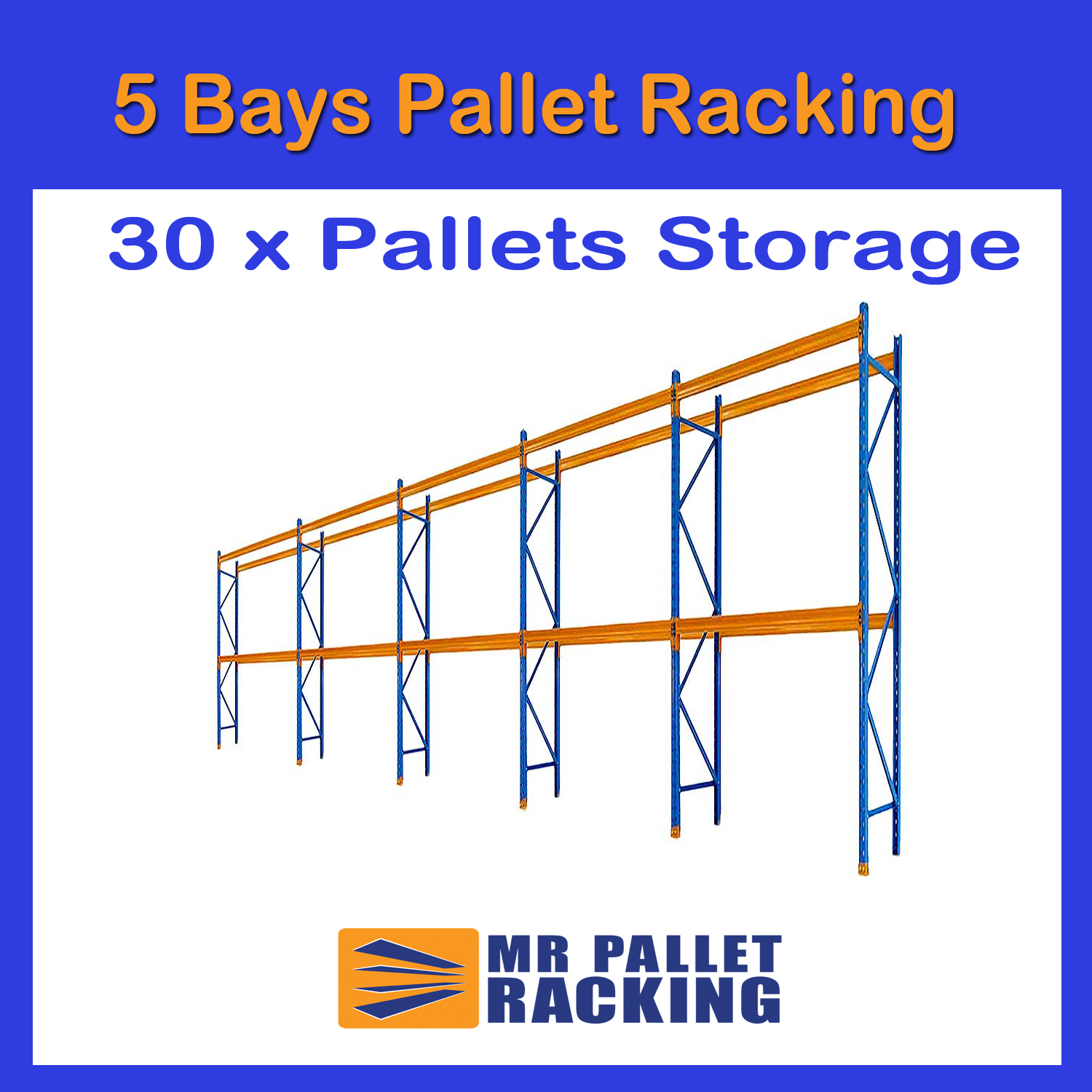

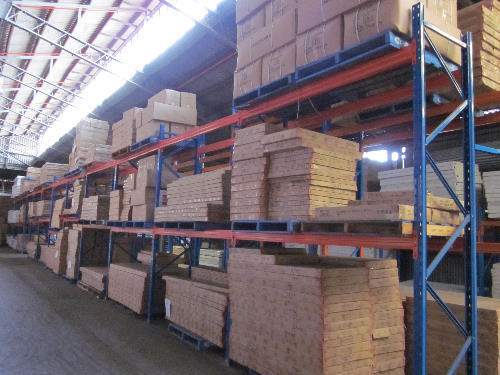

5 Bay Pallet Racking System – 30 Pallet Storage Capacity

Maximise warehouse, workshop, or retail storage with our 5-Bay Pallet Racking System, designed for superior strength, safety, and long-term durability. With capacity for 30 pallets, this heavy-duty system is ideal for large-scale storage needs.

✔️ Easy to Install – DIY setup or professional installation available
✔️ Adjustable Beams – customise height to suit your requirements
✔️ Economical & Efficient – cost-effective solution for expanding storage capacity


Specifications

  • DEXION Compatible – integrates with existing Dexion pallet systems

  • ISO 9001 Certified (SGS) – quality assurance guaranteed

  • Manufactured in accordance to AS 4084-2023 – compliant with Australian Standards

  • Constructed Dimensions (5 Bays): 13,980mm (L) x 3048mm (H) x 838mm (D)

  • Design: 3-Level heavy-duty racking system

  • Construction: High-grade steel, powder-coated finish

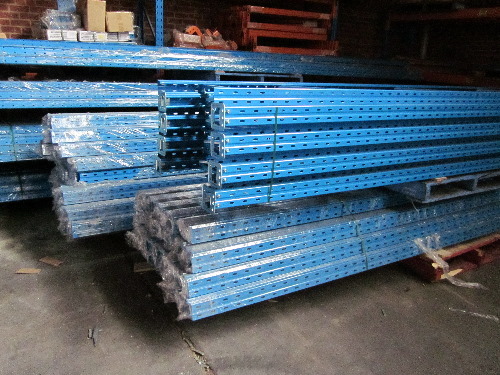

Frame Details

  • Dimensions: 3048mm (H) x 90mm (W) x 838mm (D)

  • Capacity: Certified up to 8 tonnes per frame

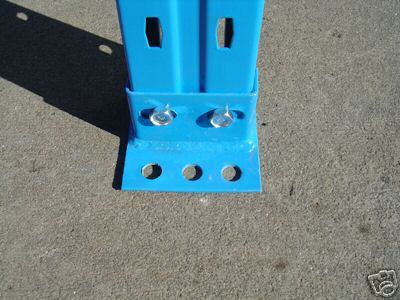

  • Components: 2 Upright posts, 2 Base plates, support bars, bolts, nuts

  • Finish: Blue powder-coated steel

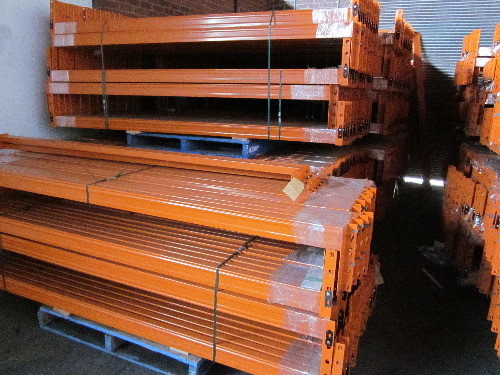

Beam Details

  • Dimensions:2680mm (L) x 100mm (H) x 45mm (D)

  • Clear Entry: 2590mm

  • Capacity: Certified up to 2 tonnes per beam

  • Finish: Orange powder-coated steel


Key Features

  • High-visibility orange beams for safety

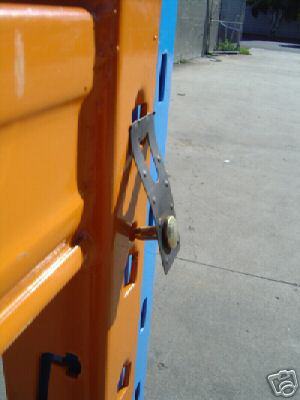

  • Quick installation with Speedlock safety pins

  • Keyhole beam-to-frame connection for rigidity and load strength

  • Easily adjustable beam height for flexible storage configurations


Package Components Included

  • 6x Fully Assembled Frames

  • 20x Heavy-Duty Beams

  • 40x Speedlock Safety Pins

  • 24x Dyna Bolts




(3048_5bays)

SKU 3048_5bays
Brand mrpalletracking
Shipping Weight 250.0000kg
