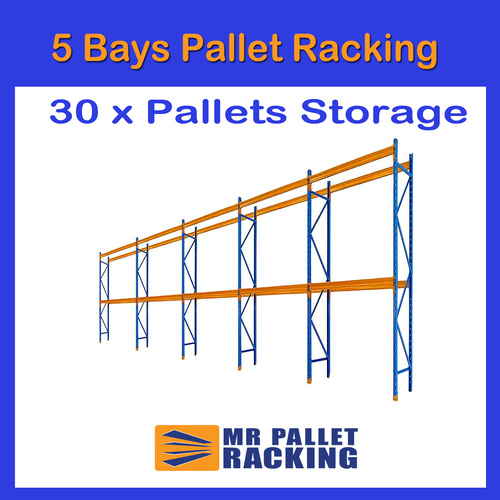

5 Bays Pallet Racking System – 30 Pallet Storage Capacity

Upgrade your warehouse or workshop with our 5-Bay Pallet Racking System, designed for durability, safety, and maximum efficiency. With a total capacity of 30 pallets, this heavy-duty racking provides the ideal storage solution for industrial, commercial, or retail applications.

✔️ Easy Installation – DIY setup or professional installation available
✔️ Flexible & Adjustable – beams can be repositioned to suit changing storage needs
✔️ Cost-Effective – low capital investment, high storage return
✔️ Certified Quality – complies with Australian safety standards

Specifications

• DEXION Compatible – integrates seamlessly with existing Dexion systems

• ISO 9001 Certified (SGS) – international quality assurance

• Standard Compliance – manufactured in accordance with AS 4084-2023 (Australian Standard for Steel Storage Racking)

• System Dimensions (5 Bays): 13,980mm (L) × 2438mm (H) × 838mm (D)

• Design: 3-Level configuration

• Construction: Heavy-duty steel, powder-coated for long-lasting performance

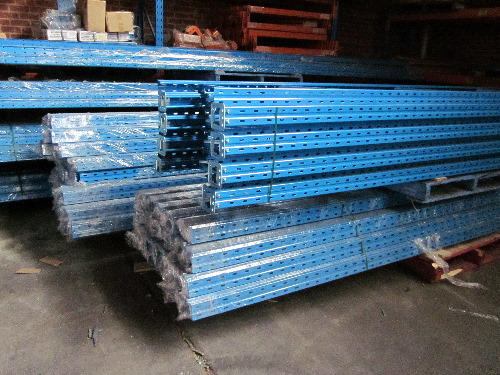

Frame Details

• Dimensions: 2438mm (H) × 90mm (W) × 838mm (D) (fully assembled)

• Load Capacity: Certified up to 8 tonnes

• Components: 2 upright posts, 2 base plates, support bars, bolts, nuts

• Finish: Blue powder-coated steel

Beam Details

• Dimensions: 2650mm (L) × 100mm (H) × 45mm (D)

• Clear Entry (usable length): 2591mm

• Load Capacity: Certified up to 2 tonnes per beam level

• Finish: Orange powder-coated steel for visibility & safety

Key Features

• High-visibility orange beams for improved safety

• Quick-lock keyhole system ensures secure connection and prevents accidental dislodgement

• Easy beam adjustment for evolving storage requirements

• Robust design provides strength, rigidity, and long-term durability

Package Includes

• 6 × Frames (with uprights, base plates, support bars, bolts, nuts)

• 20 × Beams

• 40 × Speedlock Safety Pins

• 24 × Dynabolts

Why Choose Our Pallet Racking?

Our systems are engineered to Australian standards, Dexion compatible, and designed for maximum safety and efficiency. Whether you’re expanding warehouse capacity or reorganising your workshop, this 30-pallet solution delivers reliability at a discount wholesale price.
