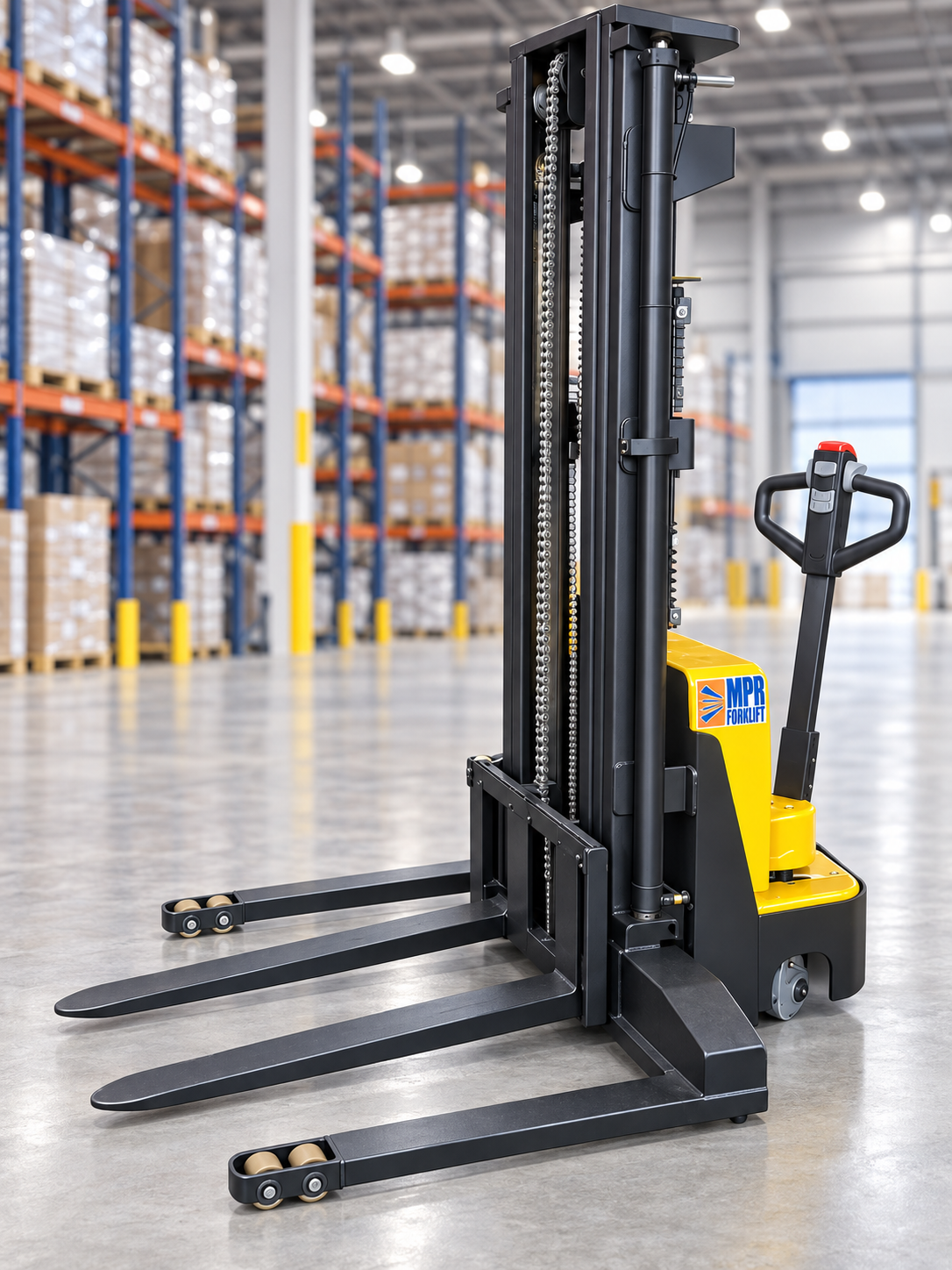

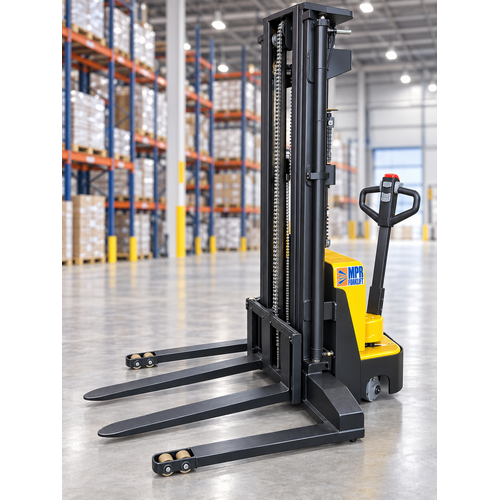

CD-15 Full Electric Pedestrian Stacker – 1.5 Tonne

Improve warehouse productivity with the CD-15 Full Electric Pedestrian Stacker, designed for efficient pallet handling, lifting and stacking.

Featuring full-electric operation, an electronic braking system and a maximum lift height of 4.7 metres, the CD-15 is suitable for warehouses, workshops, factories and storage facilities where reliable material handling is essential.

Key Features

  • 1.5-tonne rated load capacity
  • Maximum lift height of 4.7 metres
  • Full-electric stand-on operation
  • Electronic braking system
  • Powerful 48V drive and lifting motors
  • Compact design for warehouse manoeuvrability
  • Suitable for lifting, moving and stacking pallets

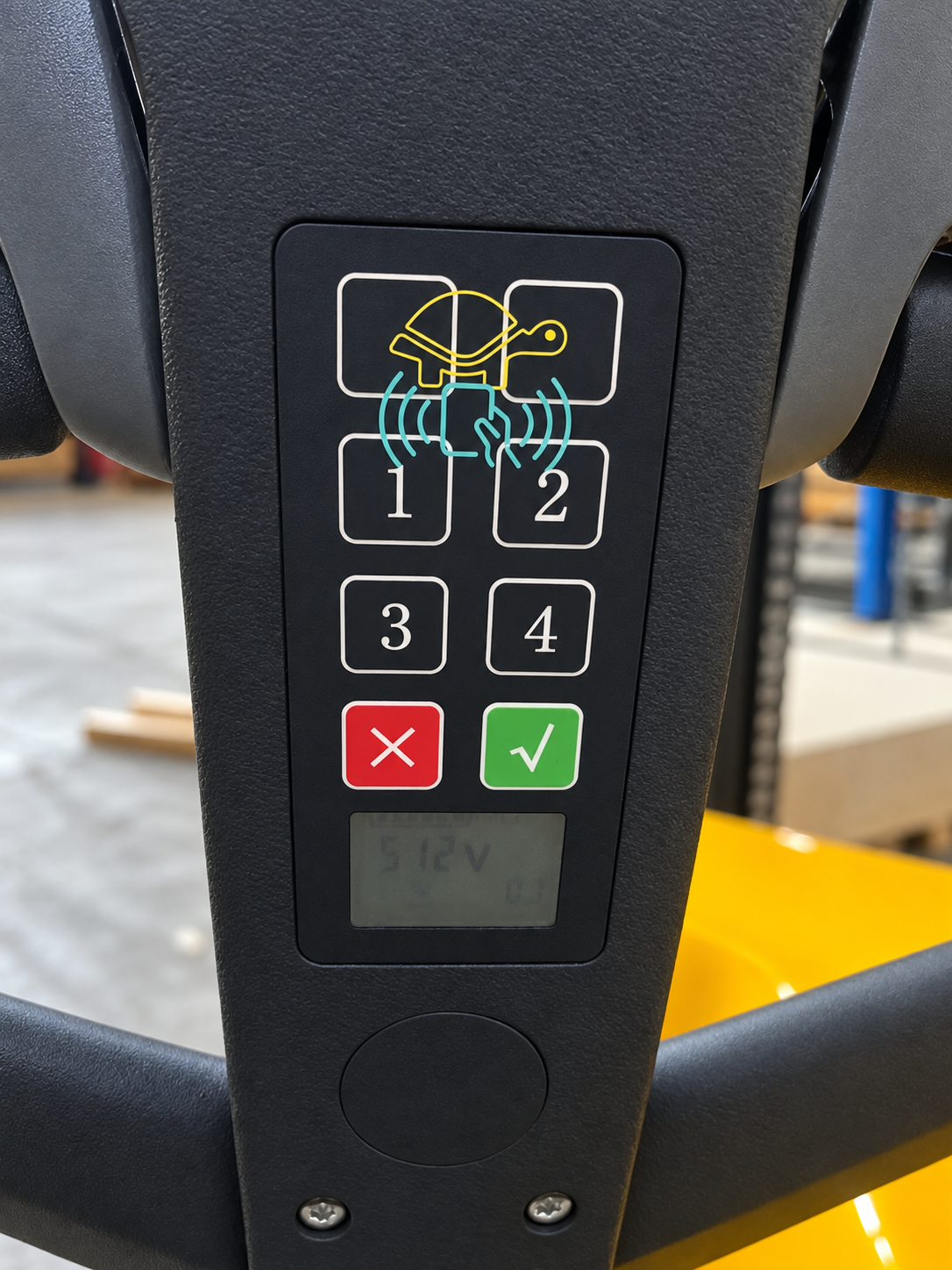

  • Easy-to-use operating controls

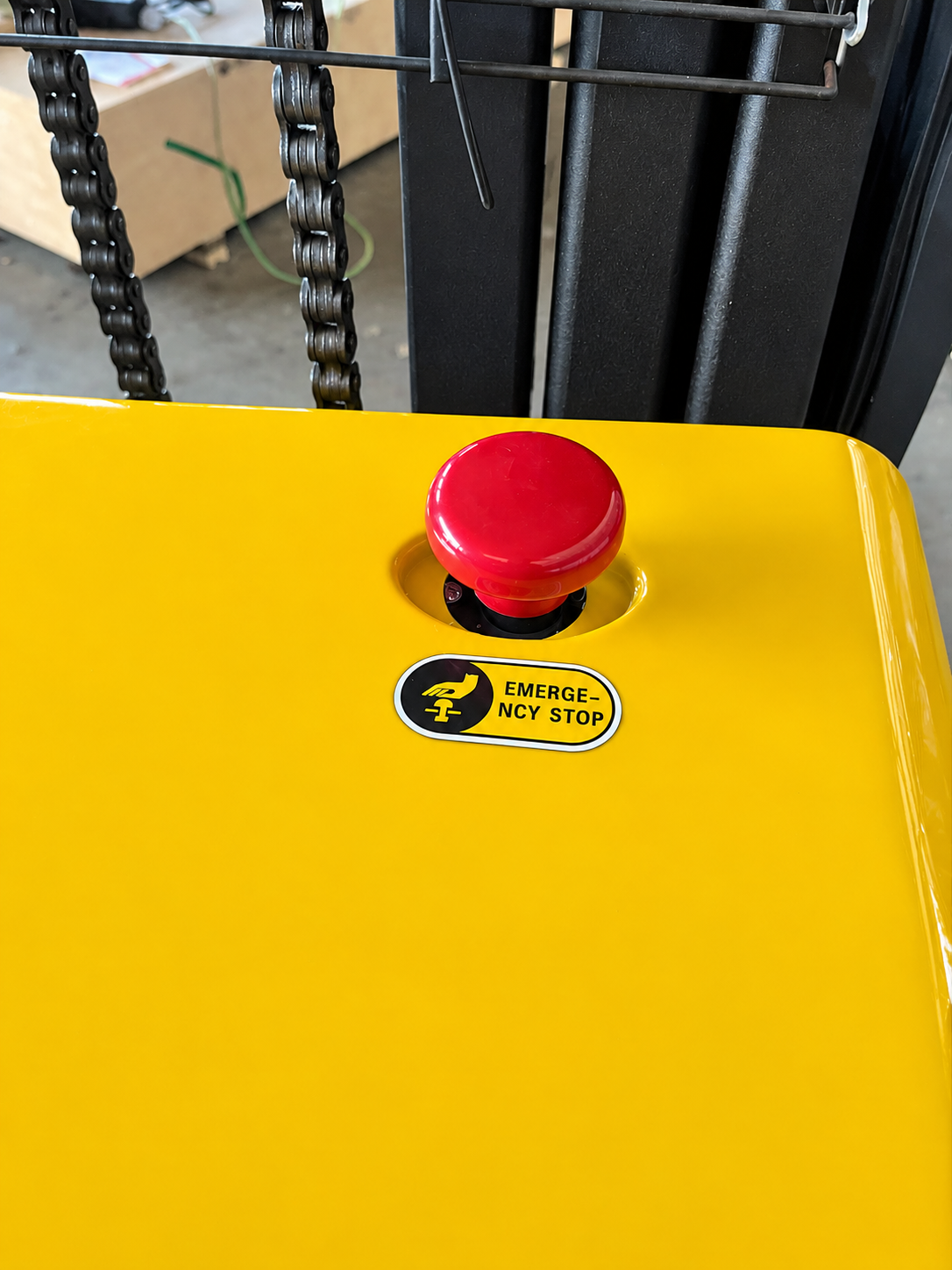

  • Emergency-stop button for additional safety

Product Specifications

Specification Details
Model CD-15
Rated load capacity 1.5 tonnes
Maximum lift height 4.7 metres
Operation type Full-electric stand-on operation
Brake system Electronic brake
Machine weight Approximately 550 kg (base model)
Fork ground clearance 85 mm
Drive motor 48V, 1500W
Lift pump motor 48V, 2200W

Load Capacity at Maximum Height

The stacker has a rated capacity of 1.5 tonnes at lower lifting heights. When the forks are raised to the maximum height of 4.7 metres, the maximum safe lifting capacity is approximately 300 kg.

The actual lifting capacity may vary depending on:

  • Load centre distance
  • Pallet size and load dimensions
  • Weight distribution
  • Mast configuration
  • Lift height
  • Floor and operating conditions

Always check the machine’s load-capacity chart before lifting. Do not exceed the specified capacity at any lift height.

Suitable Applications

The CD-15 pedestrian stacker is suitable for:

  • Warehouses and distribution centres
  • Factories and manufacturing facilities
  • Workshops and storage areas
  • Loading and unloading pallets
  • Moving pallets through narrow work areas
  • Placing stock into pallet racking
