5 Bays Pallet Racking – 40 Pallet Storage Capacity

Upgrade your warehouse or workshop storage with our heavy-duty 5 Bay Pallet Racking System. Built for strength, safety, and flexibility, this system provides space for up to 40 pallets.

Key Benefits

• Easy Installation – DIY setup or professional installation service available.

• Adjustable Design – Height-adjustable beams to suit your storage requirements.

• Cost-Effective – Maximise storage space at a low capital cost.

• Durable & Safe – Heavy-duty steel with powder-coated finish for long-lasting use.

Specifications

• Dexion Compatible – Can integrate with existing Dexion pallet systems.

• Certification – ISO 9001 Certified (SGS).

• Compliance – Manufactured in accordance with AS 4084-2023 (Australian Standard for steel storage racking).

• Dimensions (Constructed 5 Bays) – 13,980mm (L) x 4,876mm (H) x 838mm (D).

• Construction – Heavy-duty steel, powder-coated for durability.

• Design – 4 Level configuration.

Frame

• Dimensions: 4,876mm (H) x 90mm (W) x 838mm (D) – Supplied fully assembled.

• Capacity: Certified up to 8 tonnes.

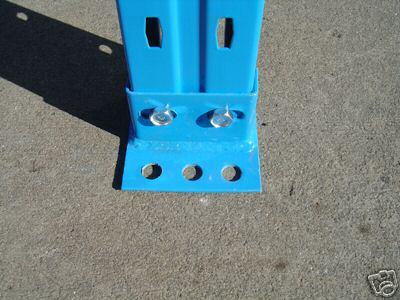

• Components: 2 Upright posts, 2 Base plates, support bars, bolts, and nuts.

• Finish: Blue powder-coating.

Beams

• Dimensions: 2591mm (L) x 100mm (H) x 45mm (D).

• Clear Entry (Usable Length): 2580mm.

• Capacity: Certified up to 2 tonnes.

• Finish: Orange powder-coating for safety and visibility.

Key Features

• Bright orange beams for safety and visibility.

• Quick and easy beam height adjustment.

• Keyhole connection with automatic safety lock – prevents accidental dislodgement and ensures strength.

• Fast installation with minimal downtime.

Package Components (Included in Sale)

• 6 x Frames (with frame components)

• 30 x Beams

• 40 x Speedlock safety pins

• 12 x Dyna Bolts
