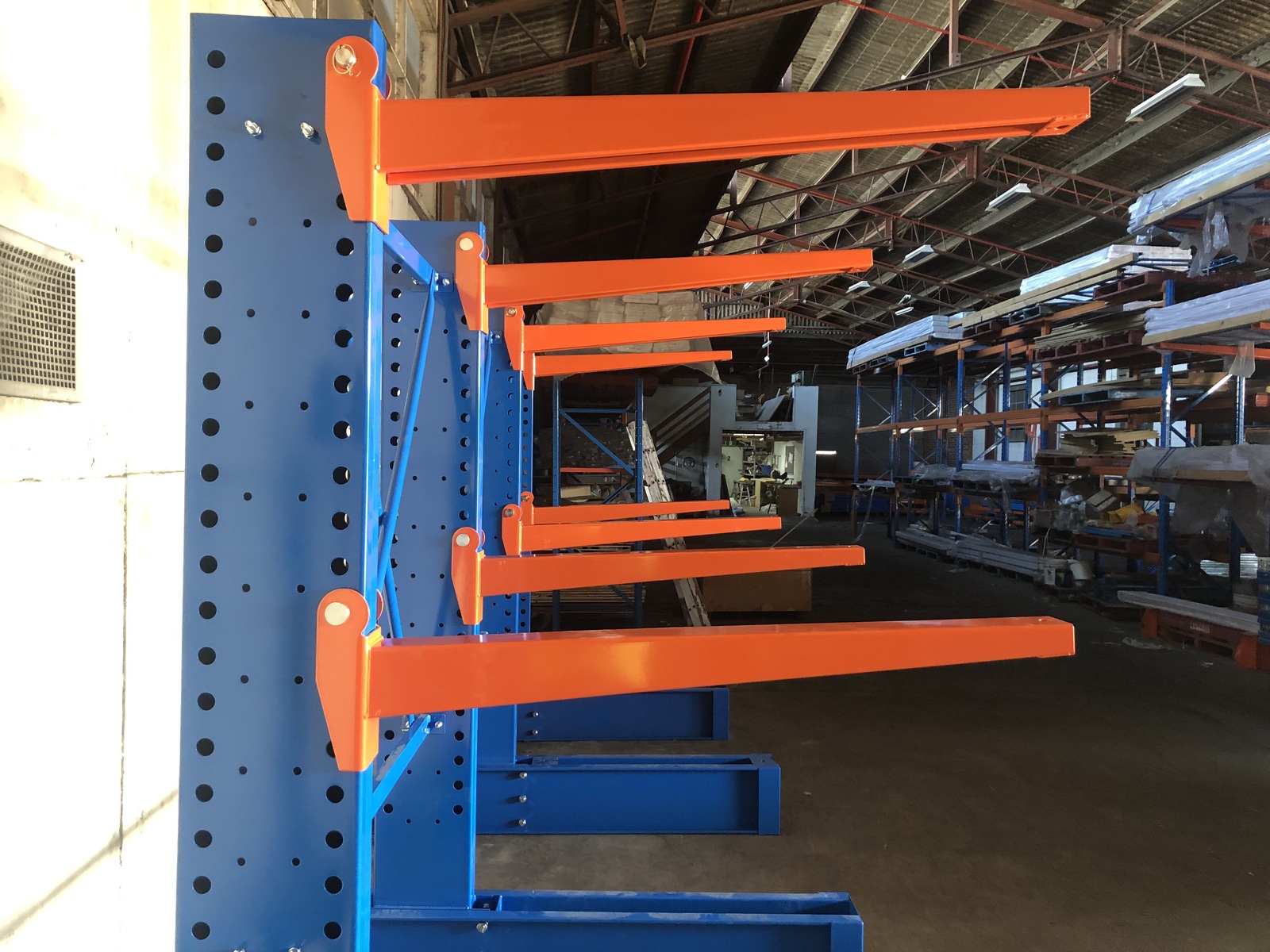

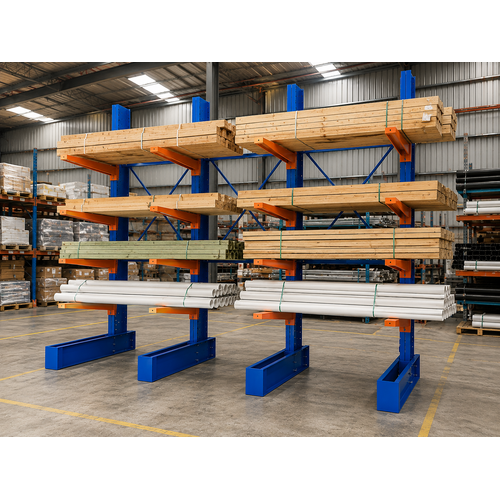

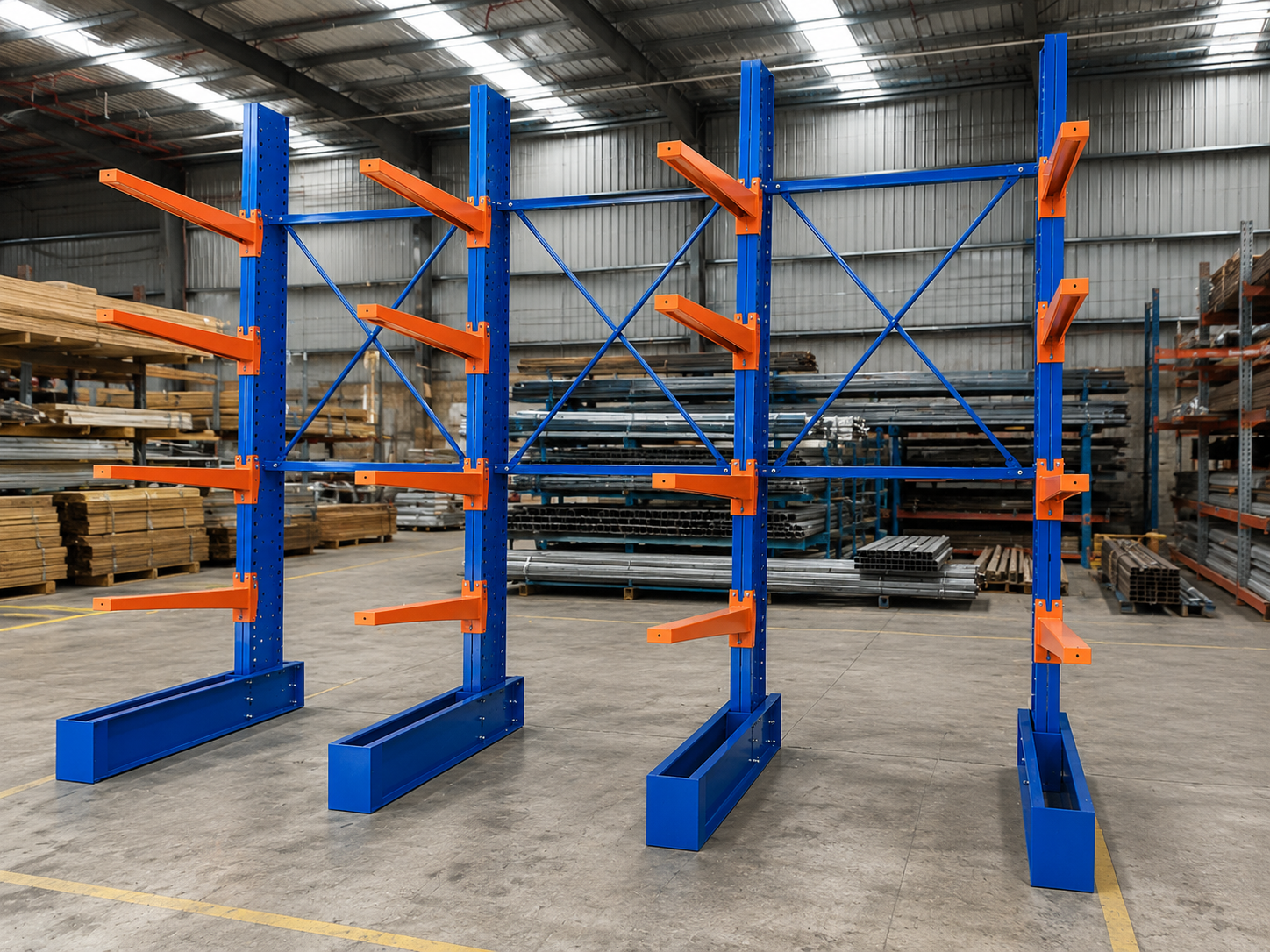

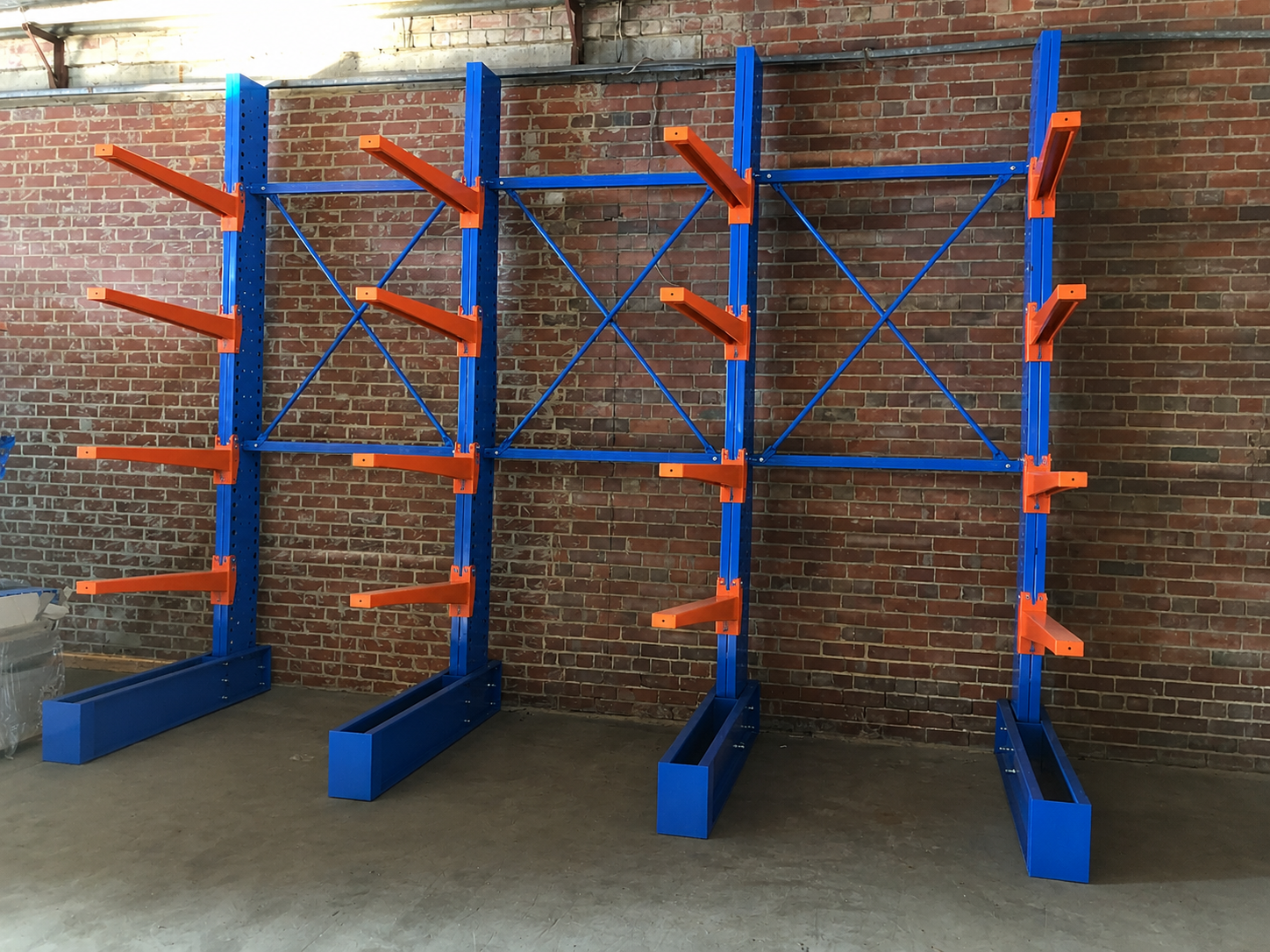

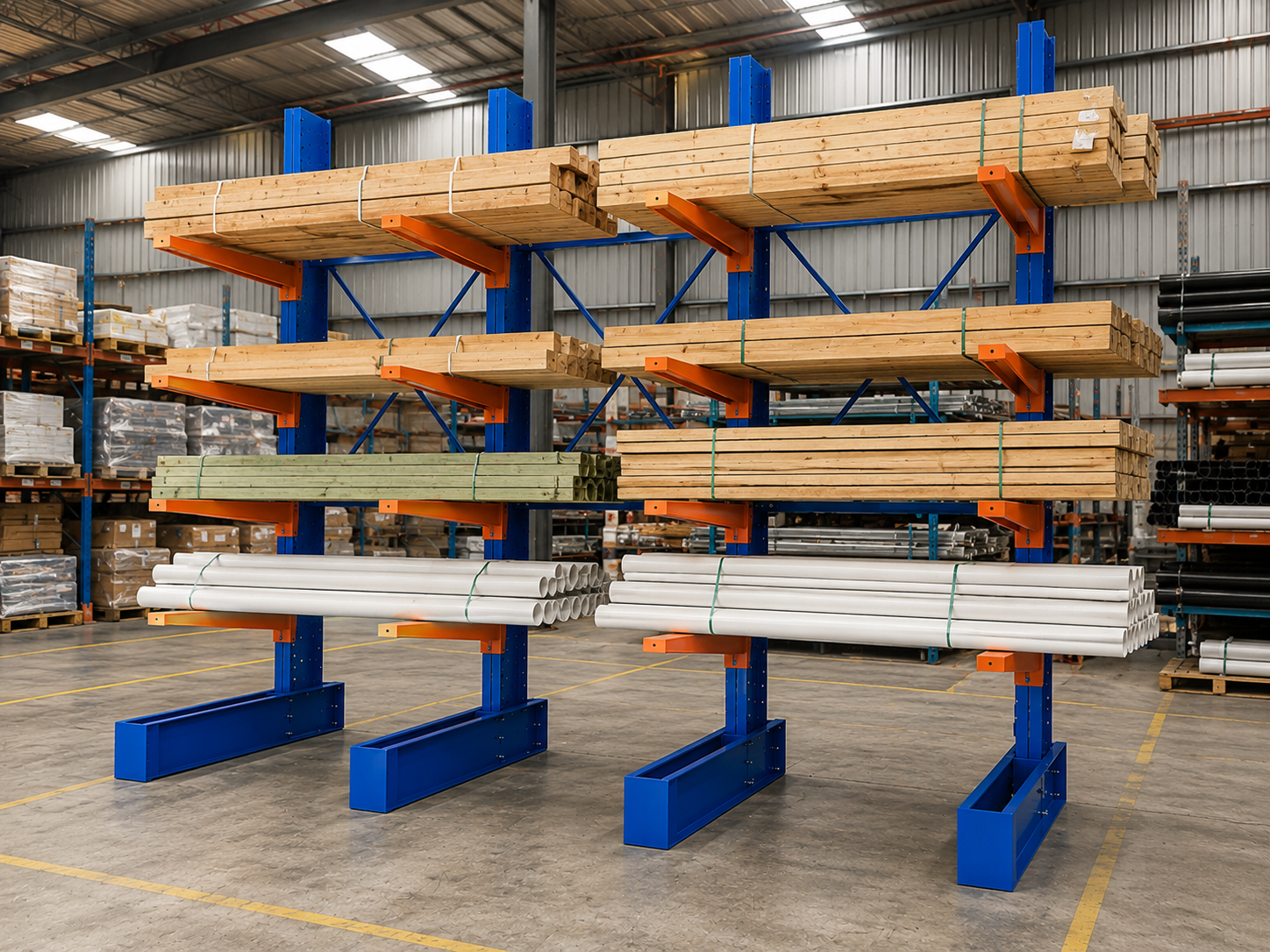

Heavy Duty Cantilever 3 Bay Single Base System 4876mm High
Heavy Duty Cantilever Racking – 3 Bays | 4876mm High | 1200mm Arms
Maximise your warehouse storage with our Heavy Duty Cantilever Racking System, designed specifically for storing long, bulky and irregular products including timber, steel, aluminium, pipes, furniture, sheet materials and other oversized products.
This 3-bay cantilever racking system features 4876mm high columns, 1200mm heavy-duty arms, and a robust industrial design that delivers exceptional strength, accessibility and long-term durability. The increased height provides significantly more vertical storage capacity, making it ideal for warehouses where maximising floor space is essential.
Built to meet Australian standards, our cantilever racking is DEXION compatible, manufactured under ISO 9001 (SGS) Quality Management Systems, and complies with AS4084-2023 for steel storage racking.
Features
- Heavy Duty 3 Bay Cantilever Racking System
- 4876mm High Upright Columns
- 1200mm Heavy Duty Arms
- 4 Storage Arms per Column
- Heavy Duty Industrial Construction
- Adjustable Arm Heights
- Modular Design – Easily Expand with Additional Bays
- Blue Powder-Coated Uprights with Orange Arms
- Excellent Front Access for Forklift Loading
- Suitable for Indoor Warehouse Applications
- Professional Installation Available
Ideal Applications
Perfect for storing:
- Timber & Building Materials
- Steel Sections
- Aluminium Extrusions
- Pipes & Tubing
- PVC Products
- Furniture Components
- Sheet Materials
- Long Industrial Products
The open-front cantilever design allows forklifts to load and unload materials quickly without front upright obstructions, improving warehouse efficiency and safety.
Specifications
| Specification | Details |
|---|---|
| System Configuration | 3 Bays |
| Overall Length | 4660mm |
| Column Height | 4876mm |
| Base Depth | 1590mm |
| Arm Length | 1200mm |
| Arms Per Column | 4 |
| Finish | Blue Uprights / Orange Arms (Powder Coated) |
| Compatible With | Dexion Style Systems |
Load Capacity
- 4000kg Capacity per Upright Post
- 2800kg Capacity per Storage Level
- Heavy Duty Industrial Construction
- Engineered for Strength, Safety and Long-Term Reliability
Package Includes
- 4 × 4876mm Upright Posts
- 4 × 1590mm Heavy Duty Bases
- 3 × 1500mm Bracing Sets
- 16 × 1200mm Heavy Duty Arms (4 per column)
- Complete Nut & Bolt Kit
- Assembly Instructions
Quality & Compliance
Manufactured using strict quality control processes to deliver outstanding performance and durability.
- ✅ Complies with Australian Standard AS4084-2023
- ✅ Manufactured under ISO 9001 (SGS) Certified Quality Management System
- ✅ Dexion Compatible Design
- ✅ Heavy Duty Commercial Grade Construction
Delivery & Installation
- Pickup available from our Melbourne warehouse
- Melbourne Metro freight available
- Professional installation service available
- Freight quotes available upon request
Why Choose MR Pallet Racking?
- Over 20 years of industry experience
- AS4084-2023 compliant storage systems
- Heavy-duty commercial-grade construction
- Competitive pricing
- Fast Australia-wide delivery
- Professional installation available
- Expert technical advice and after-sales support
Our 4876mm High Heavy Duty Cantilever Racking is the ideal solution for warehouses and industrial facilities needing maximum vertical storage for long, heavy and oversized materials while maintaining safe and efficient forklift access.
(cl4876_3bays)
| SKU | cl4876_3bays |
| Brand | mrpalletracking |
