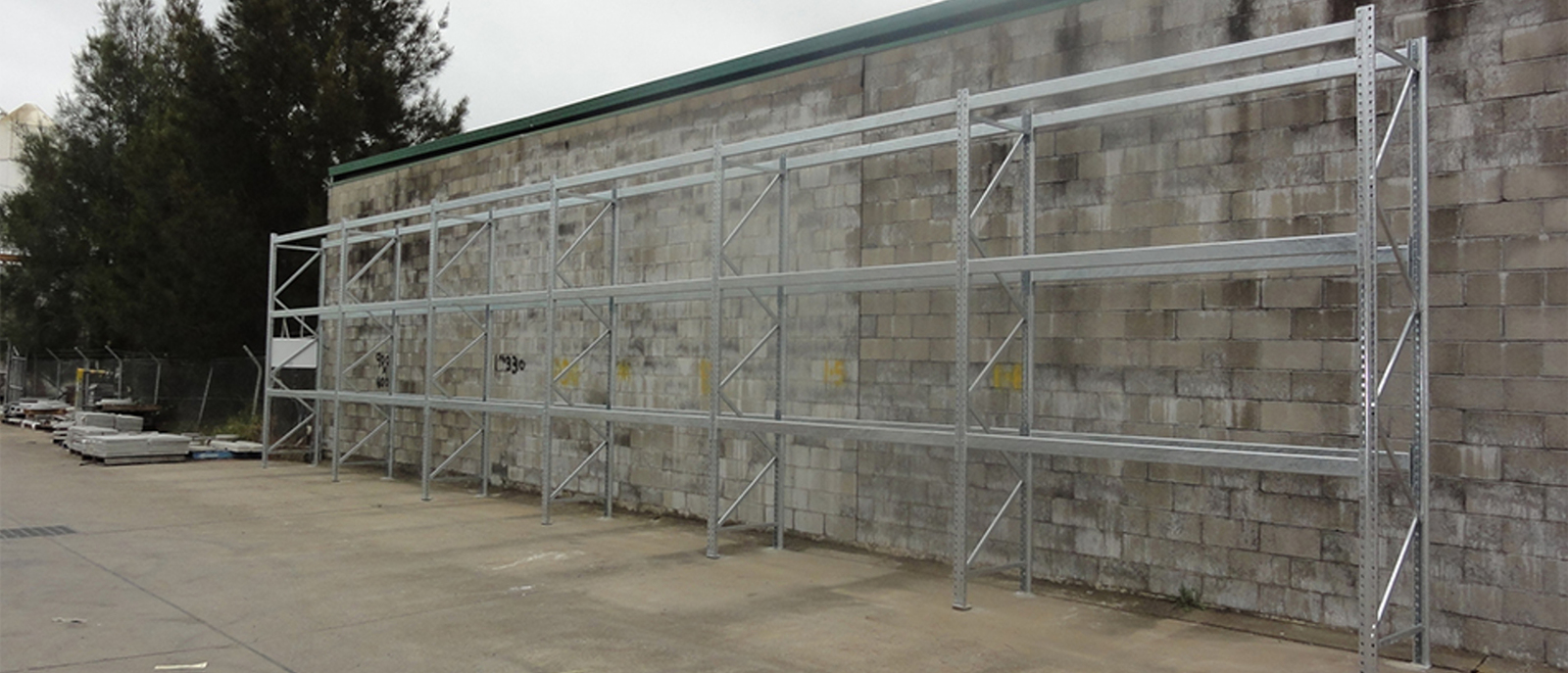

Heavy Duty Pallet Racking System – 3 Bays (18 Pallet Storage Capacity)

Upgrade your warehouse, workshop, or retail space with our 3-Bay Heavy Duty Pallet Racking System, engineered for both indoor and outdoor use. Offering a total 18 pallet storage capacity, this system delivers strength, durability, and compliance for safe long-term storage.


Key Features

  • Galvanised & Hot-Dip Galvanised Finish – maximum corrosion resistance

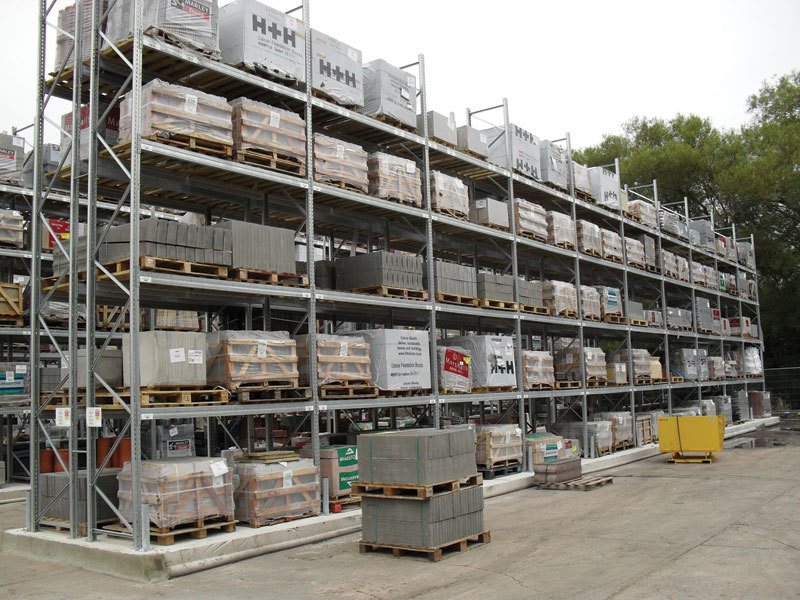

  • Outdoor-Ready – rust-proof, weather-resistant design

  • DIY Friendly – easy to install, with professional installation service available

  • Height Adjustable Beams – customise to suit your storage requirements

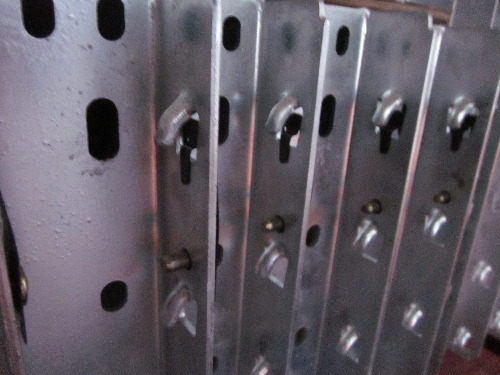

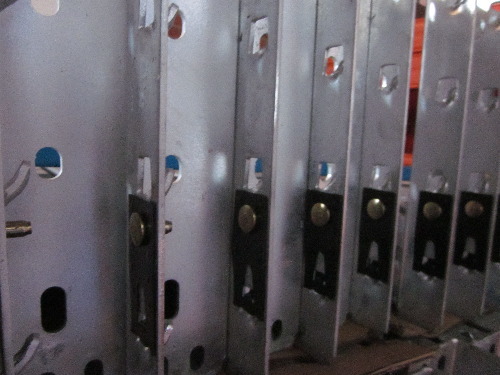

  • Safety Locking Mechanism – speedlock pins + keyhole design for secure beam connection

  • Extra Strength – rigid load-bearing frame for superior safety and stability


Specifications

System Dimensions (3 Bays):
8,388mm (L) x 3048mm (H) x 838mm (D)

Design:
3-Level racking system – total 18 pallet spaces

Construction:
Heavy Duty Steel – Hot-Dip Galvanised for maximum corrosion protection, designed for outdoor use

Standards & Compliance:

  • DEXION compatible – integrates with existing racking systems

  • ISO 9001 Certified (SGS)

  • Manufactured to AS 4084-2023 Australian Standard for Steel Storage Racking

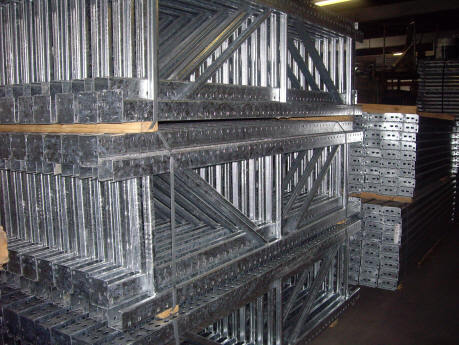

Frame Details

  • Dimensions: 3048mm (H) x 90mm (W) x 838mm (D)

  • Load Capacity: Certified up to 8 tonnes per frame

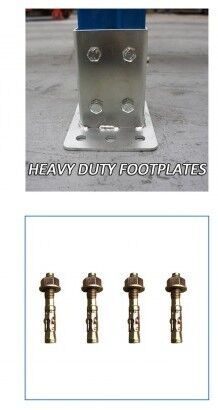

  • Components: 2 Upright posts, 2 Base plates, support bars, bolts & nuts

  • Finish: Hot-Dip Galvanised – weather-resistant, rust-proof

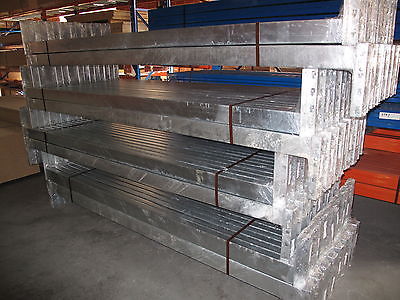

Beam Details

  • Dimensions: 2591mm (L) x 100mm (H) x 45mm (D)

  • Clear Entry: 2590mm

  • Load Capacity: Certified up to 2 tonnes per beam

  • Finish: Hot-Dip Galvanised – weather-resistant, rust-proof


Package Components (Included)

  • 4x Frames (with base plates & hardware)

  • 12x Beams

  • 24x Speedlock Safety Pins

  • 12x Dynabolts


Delivery & Installation

  • Delivery available Australia-wide

  • Installation service available on request

  • Contact us for a tailored freight quote

(G3048_3bays)

SKU G3048_3bays
Shipping Weight 450.0000kg
