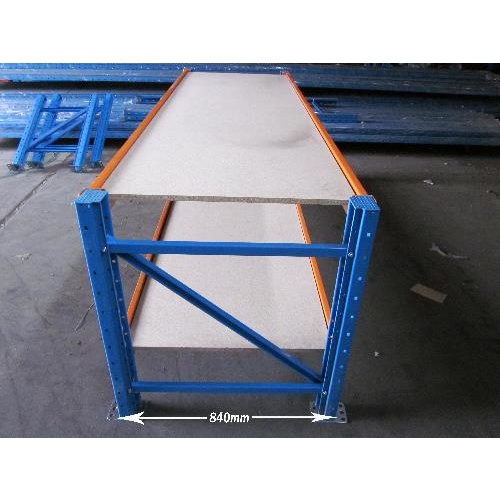

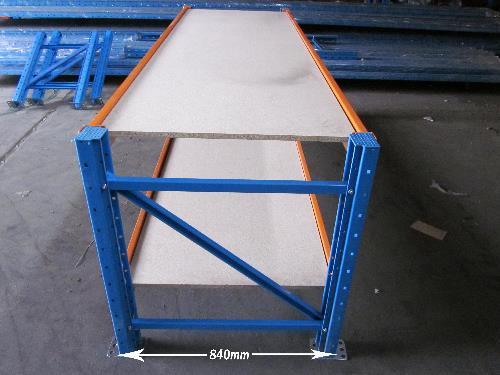

Heavy Duty Warehouse Workbench 2770 × 840 × 914mm (Particle Board Top)

Heavy-duty adjustable workbench built from pallet racking components — ideal for packing stations, assembly areas and workshop benches.

Designed for warehouses, factories and garages, this industrial workbench provides a strong and economical solution for organising your workspace. Built using commercial pallet racking frames and beams, it offers superior strength compared to standard steel benches while remaining easy to install.

Easy DIY installation, with optional professional installation available.

Key Benefits

• Heavy duty industrial construction

• Adjustable beam heights to suit different working requirements

• Quick DIY installation (no welding required)

• Economical solution for packing benches & workshop benches

• Increases warehouse efficiency and organisation

• Expandable — can be joined with additional bays

Specifications

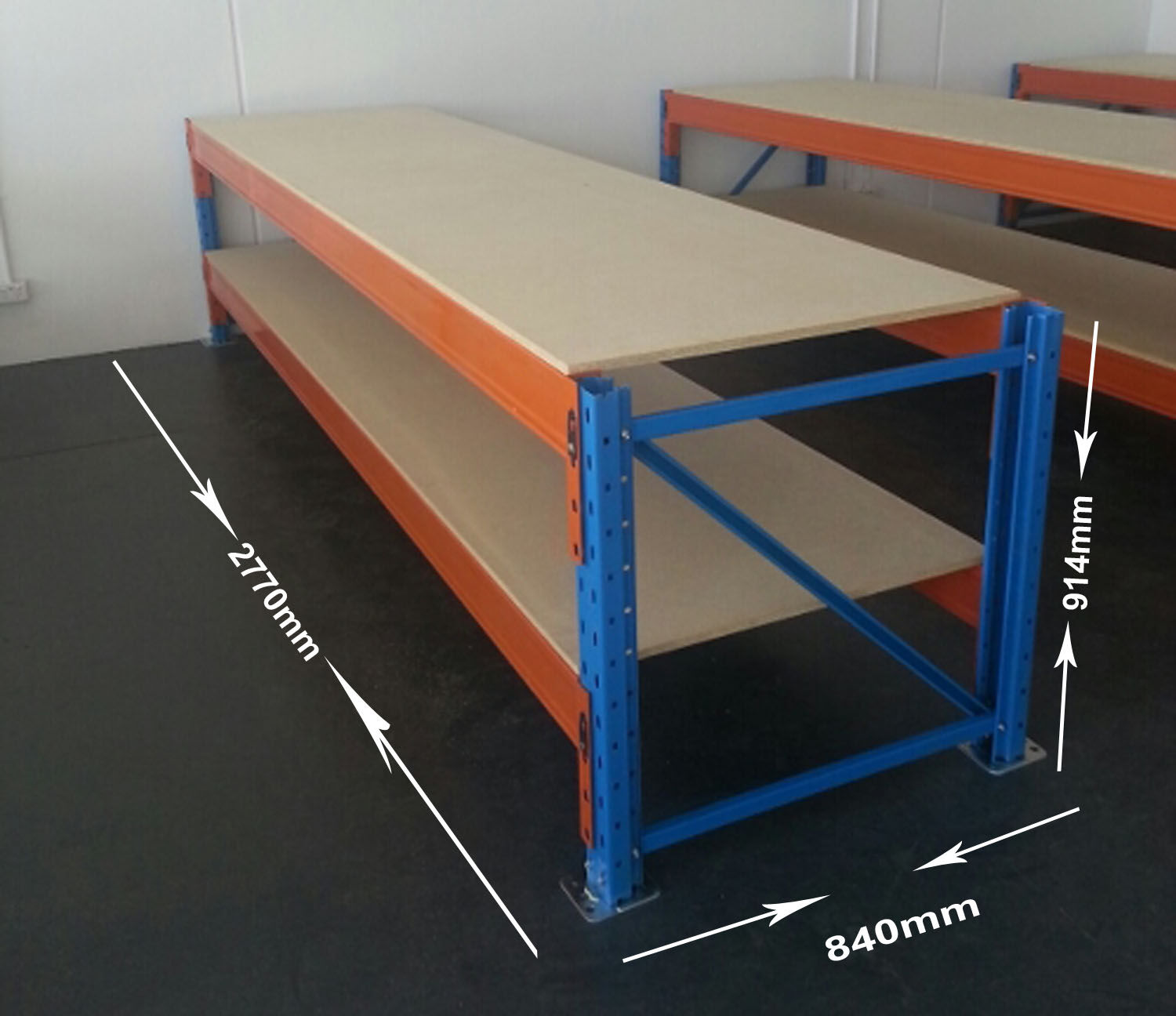

Overall Bench Size

• Width: 2770 mm

• Depth: 840 mm

• Height: 914 mm (bench height)

Frames (Uprights)

• Frame dimensions: 914mm (H) × 840mm (D)

• Upright width: 55mm

• Powder-coated blue finish

• Includes:

  • 2 × Upright columns

  • 2 × Base plates

  • Support bracing bars

  • Bolts & nuts

Beams

• Beam size: 2590mm (L) × 55mm (H) × 40mm (D)

• Clear usable span: 2590mm

• Powder-coated orange finish

• Adjustable height positions via keyhole connection

Bench Top

• 2 × Heavy Duty Particle Boards (cut to fit)

• Designed to support cartons, tools and packing equipment

• Easy to replace or upgrade in the future

Key Design Features

Adjustable Beam System
The beam levels can be easily repositioned to suit different working heights or storage needs, making the bench adaptable for changing operations.

Keyhole Locking Connection
The beam connects to the upright via a heavy-duty keyhole locking system. Once installed, the safety lock snaps into place to prevent accidental dislodgement while maintaining high load capacity and rigidity.

Industrial Strength Construction
Unlike light-duty benches, this workbench is built using commercial pallet racking components, providing significantly greater durability and load performance.

What’s Included

• 2 × Frames (complete with bracing & base plates)

• 4 × Beams

• 2 × Particle board bench tops

Installation

• DIY friendly assembly

• Installation service available (Melbourne metro)

Ideal For

• Warehouse packing stations

• Dispatch & packing benches

• Workshops & garages

• Assembly stations

• E-commerce fulfilment areas
