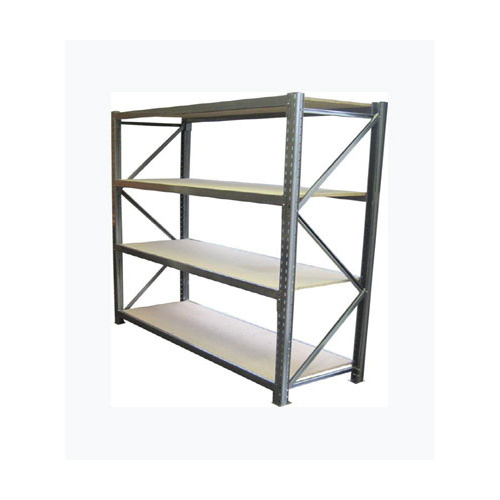

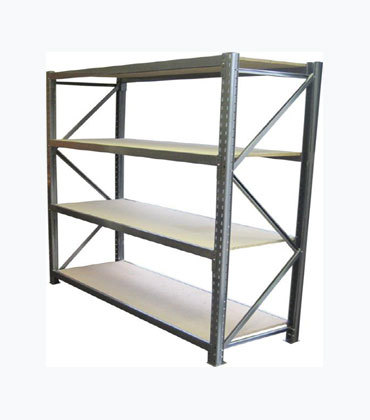

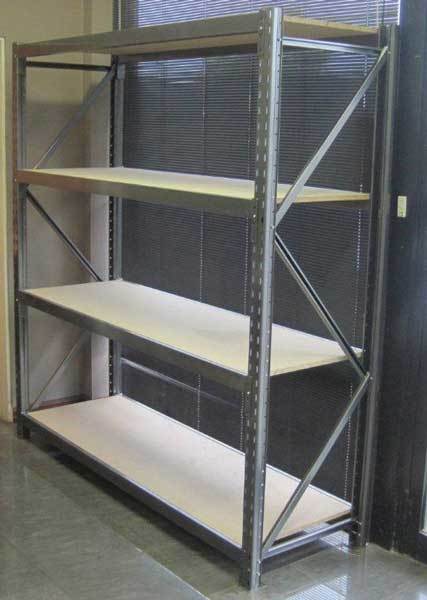

LONG SPAN / LIGHT DUTY WAREHOUSE RACKING SYSTEM – 1 BAY (4 LEVELS)

Ideal for Warehouse • Garage • Workshop • Retail Storage

Our Long Span Light Duty Shelving System is an economical and versatile storage solution designed for warehouses, workshops, garages and retail stockrooms.
The system provides fast, direct access to every shelf level while maximising vertical storage space.

The boltless keyhole connection allows quick installation and easy shelf adjustment, making it perfect for changing stock sizes and daily operations.

DIY installation is simple, or we can install it for you across Metro Melbourne.

Key Benefits

• Fast and easy boltless assembly (DIY friendly)

• Adjustable shelf heights to suit different stock sizes

• Direct access to every shelf level

• Strong steel construction with powder-coated finish

• Low capital cost storage solution

• Installation service available

• Ideal for cartons, spare parts, tools, and retail inventory

SYSTEM SPECIFICATIONS

• Certification: ISO 9001 Certified (SGS)

• Configuration: 1 Bay – 4 Shelf Levels

• Overall Size: 3000mm (L) × 2400mm (H) × 800mm (D)

• Construction: Powder-coated steel frame

• Shelf Capacity: Up to 300kg per level (UDL)

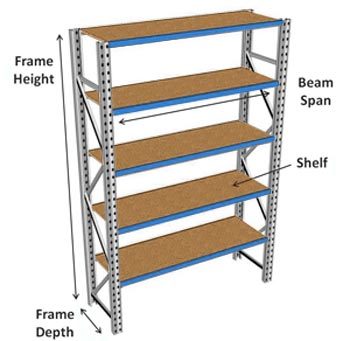

FRAME DETAILS

• Size: 2400mm (H) × 800mm (D)

• Heavy duty steel upright posts

• Includes base plates & bracing supports

• Powder coated Grey finish

• Components per frame:

  • 2 × Upright posts

  • Base plates

  • Support bars

  • Bolts & nuts

BEAM DETAILS

• Beam Length: 3000mm

• Profile: 55mm (H) × 40mm (D)

• Clear entry: 3000mm usable

• Finish: Grey powder coated

• Load Rating: Up to 300kg per shelf level

• Secured using steel safety locking pins

PARTICLE BOARD SHELVES

• Size: 3000mm (L) × 750mm (D) × 18mm thick

• Designed for 800mm deep frames (rear clearance gap for safe loading)

• Even load distribution across beams

• Load Rating: 300kg per level (UDL)

PACKAGE INCLUDES

• 2 × Frames

• 8 × Beams

• 16 × Safety locking pins

• 4 × Particle board shelves

FEATURES

• Adjustable shelf heights

• Keyhole beam locking system

• Anti-dislodgement safety pins

• Strong & rigid construction

• Expandable — add additional bays anytime

The keyhole connection system locks firmly once installed, improving rack rigidity while still allowing quick shelf adjustment when your storage requirements change.
