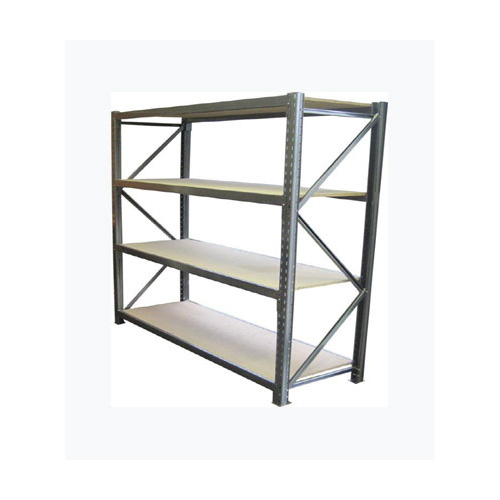

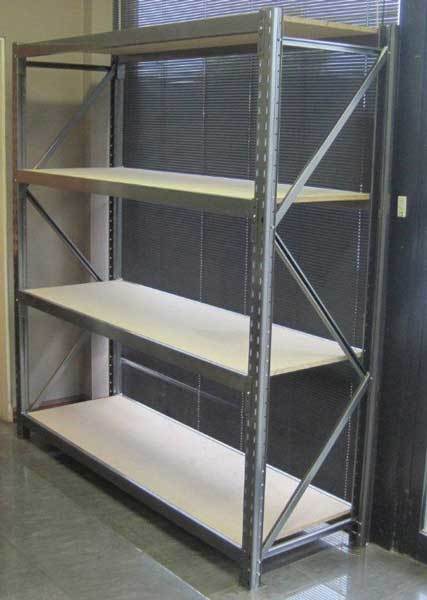

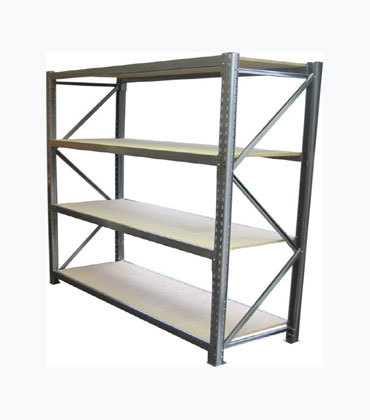

2000mm Long Span Racking – 1 Bay with 4 Shelves

Maximise your storage space with the MR Pallet Racking Long Span Light-Duty Warehouse Racking System. This versatile shelving solution includes one bay with four adjustable particle board shelf levels, making it ideal for storing cartons, tools, equipment, spare parts and general stock.

Designed for warehouses, garages, workshops, storerooms and retail environments, the system provides fast and direct access to every shelf. Its adjustable design allows the shelf heights to be changed easily as your storage requirements evolve.

The racking is suitable for DIY assembly, or MR Pallet Racking can provide professional installation throughout metropolitan Melbourne.

Product Specifications

• Overall dimensions: 2400mm high × 2000mm wide × 800mm deep
• Configuration: One bay with four shelf levels
• Shelf capacity: Certified up to 300kg per level
• Total capacity: Up to 1200kg evenly distributed
• Construction: Heavy-duty steel
• Finish: Durable grey powder coating
• Certification: ISO 9001 certified product by SGS
• Assembly: Suitable for DIY installation
• Shelf heights: Fully adjustable

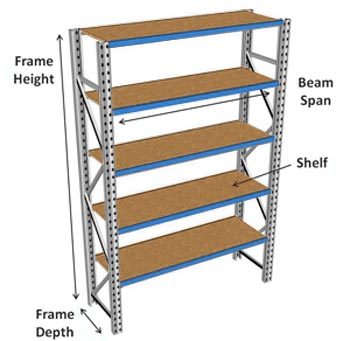

Frame Specifications

Each frame is constructed from heavy-duty powder-coated steel to provide strength, stability and long-lasting performance.

• Frame dimensions: 2400mm high × 55mm wide × 800mm deep
• Colour: Grey
• Finish: Powder coated
• Upright posts: Two per frame
• Base plates: Two per frame
• Includes support bars, bolts and nuts

Beam Specifications

The adjustable beams connect securely to the upright frames through a keyhole connection system.

• Beam length: 2000mm
• Beam profile: 55mm high × 40mm deep
• Clear usable entry: Approximately 1990mm
• Certified capacity: Up to 300kg per level
• Finish: Grey powder coating
• Safety pins included

Particle Board Shelf Specifications

The supplied 18mm particle boards provide a smooth and practical storage surface for cartons, tools, equipment and other general items.

• Length: 1990mm
• Depth: 745mm
• Thickness: 18mm
• Usable shelf length: 1990mm
• Capacity: Up to 300kg per level when correctly installed

Package Includes

This complete one-bay shelving package includes:

• 2 complete frames
• 8 adjustable beams
• 16 beam safety pins
• 4 particle board shelves
• All required frame support bars, base plates, bolts and nuts

Key Benefits

• Economical warehouse and workshop storage solution
• Four spacious particle board shelf levels
• Up to 300kg capacity per level
• Fast and easy DIY assembly
• Professional installation service available
• Adjustable shelf heights
• Direct access to products on every level
• Durable powder-coated steel construction
• Secure keyhole beam connections
• Safety pins help prevent accidental beam dislodgement
• Suitable for commercial and residential storage

Adjustable and Secure Design

The beams attach to the upright frames using a strong keyhole connection. Once each beam is fitted, the supplied safety pins lock it securely into position and help prevent accidental dislodgement.

Beam heights can be adjusted without complicated modifications, allowing you to customise the shelf spacing for different products and storage requirements.

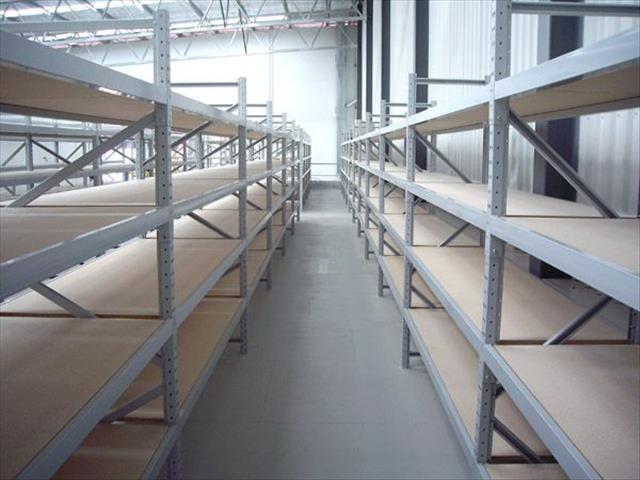

Suitable Applications

This long span shelving system is suitable for:

• Warehouses and distribution areas
• Workshops and factories
• Garages and sheds
• Retail stockrooms
• Parts and equipment storage
• Archive and document storage
• Cartons and packaged goods

Professional Installation Available

Professional installation is available throughout metropolitan Melbourne

Order from MR Pallet Racking

MR Pallet Racking has supplied dependable warehouse storage solutions in Melbourne since 2006. Contact our team for product availability, delivery options or professional installation.
