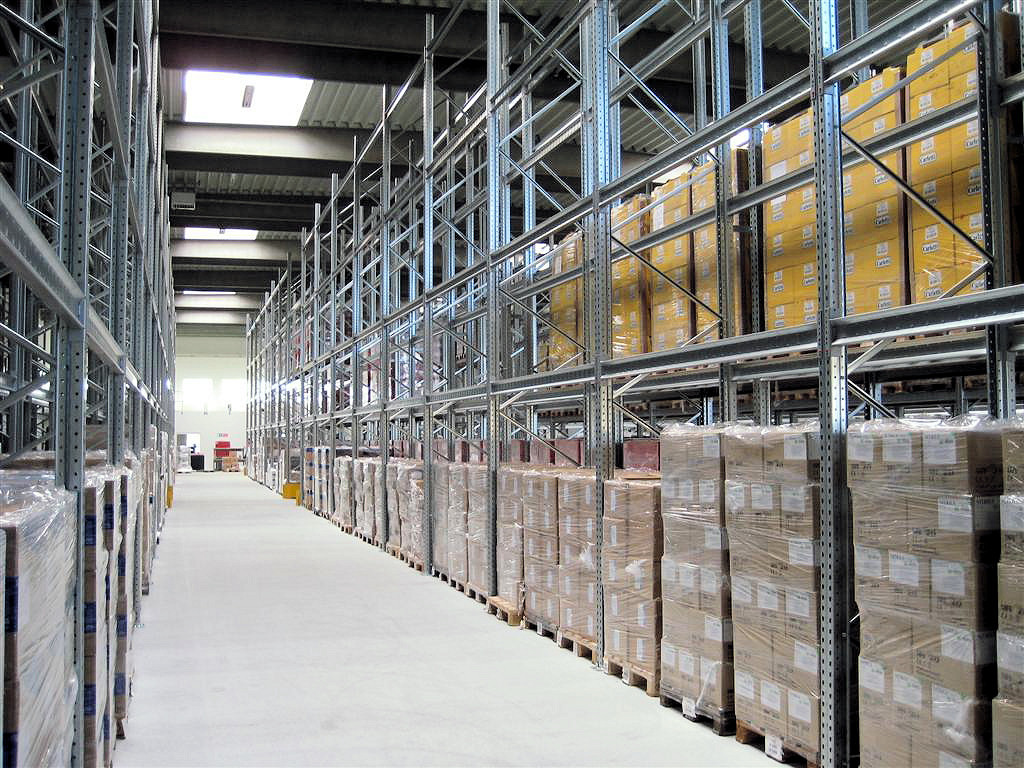

Heavy Duty Pallet Racking System – 5 Bays (30 Pallet Storage Capacity)

Upgrade your warehouse, workshop, or retail storage with our 5-Bay Pallet Racking System, engineered for indoor and outdoor use. With a total 30 pallet storage capacity, this system combines strength, safety, and long-lasting durability.

✔️ Galvanised & Hot-Dip Galvanised Finish – built for corrosion resistance
✔️ Suitable for outdoor environments – weatherproof and rust-resistant
✔️ Easy to install (DIY), professional installation service available
✔️ Height adjustable beams – configure to suit your requirements

Specifications

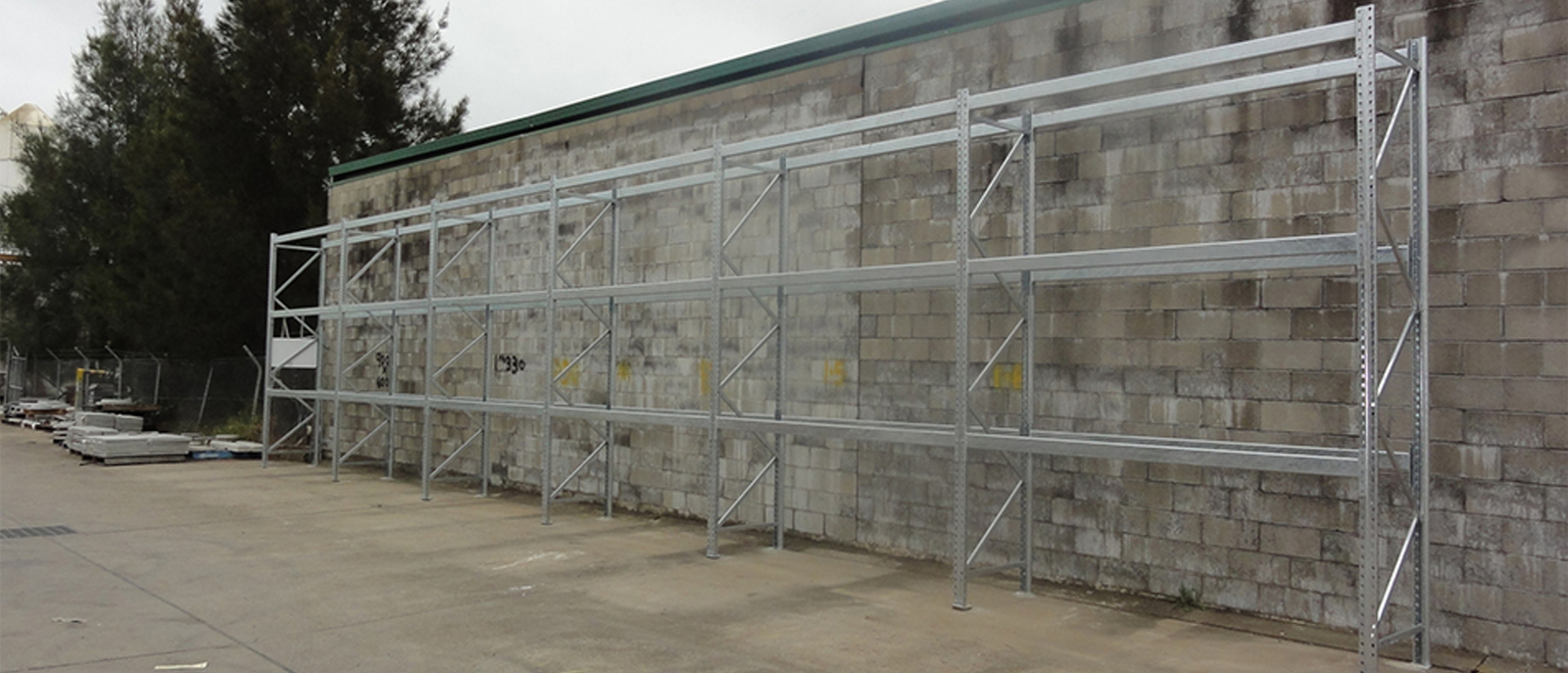

System Length (5 bays): 13,980mm (L) x 3048mm (H) x 838mm (D)
Design: 3-Level racking system
Construction: Heavy Duty Steel, Galvanised & Hot-Dip Galvanised for maximum corrosion protection and outdoor use
Standards:
- DEXION compatible (integrates with existing systems)
- ISO 9001 Certified (SGS)
- Manufactured in accordance with AS 4084-2023 Australian Standard for Steel Storage Racking

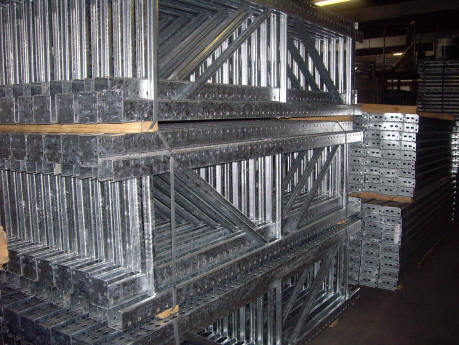

Frame Details

Dimensions: 3048mm (H) x 90mm (W) x 838mm (D)
Load Capacity: Certified up to 8 tonnes per frame

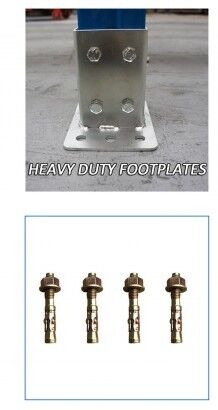

Components per frame: 2 Upright posts, 2 Base plates, support bars, bolts, nuts
Finish: Hot-Dip Galvanised – weather-resistant, rust-proof, and corrosion-resistant for outdoor use

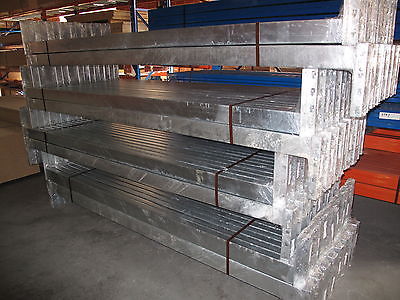

Beam Details

Dimensions: 2591mm (L) x 100mm (H) x 45mm (D)
Clear Entry: 2590mm
Load Capacity: Certified up to 2 tonnes per beam
Finish: Hot-Dip Galvanised – weather-resistant, rust-proof, and corrosion-resistant for outdoor use

Key Features

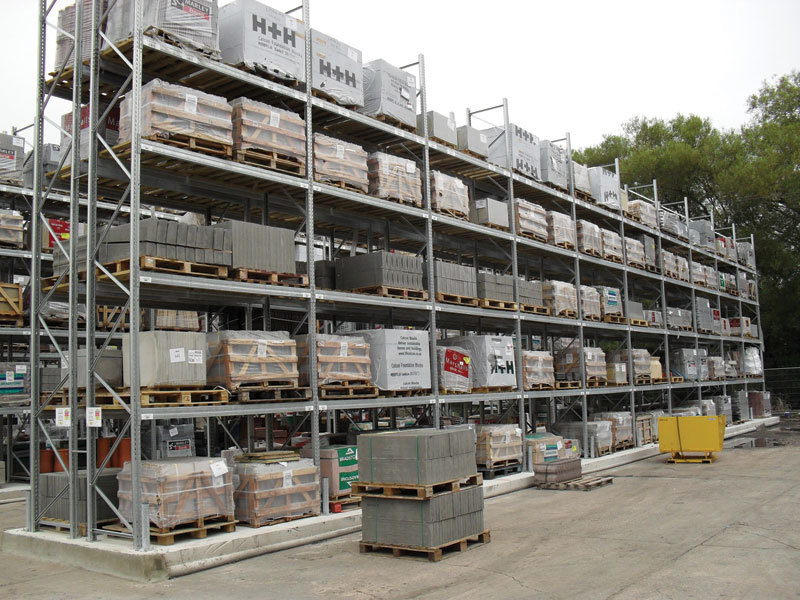

Outdoor-Ready Design: Galvanised & Hot-Dip Galvanised steel ensures protection against rust and harsh weather
High-Visibility Beams: Powder coated orange for safer operations
Fast Installation: Low capital cost and quick assembly time
Adjustable Layout: Easy beam adjustment for changing storage requirements

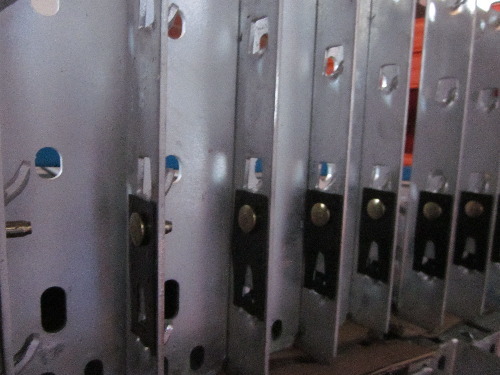

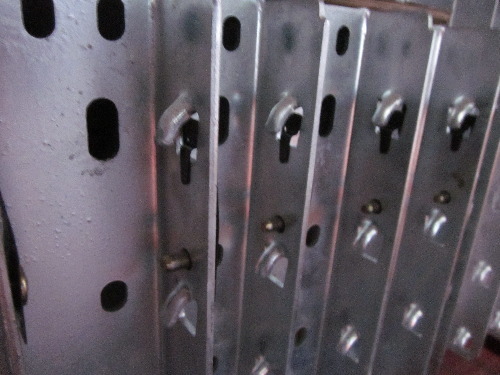

Safety Locking Mechanism: Keyhole connection + speedlock pins to prevent accidental dislodgement
Extra Strength & Stability: Rigid load-bearing keyhole system provides enhanced safety
