4 BAYS – 24 PALLET STORAGE CAPACITY

-Easy to install (DIY), installation service available.
-Easy to adjust, height adjustable beams to suit eequirements.
-Economical – low capital cost, increase warehouse/workshop storage capacity & efficiency.

PLUS *** BONUS *** SAFETY STANDARDS SIGNS FOR OHS COMPLIANCE ( VALUED AT $60)

Please contact us for a quote on delivery

SPECIFICATIONS

- DEXION compatible, can be added or integrated with existing Dexion pallet systems.

- ISO 9001 Certified product (SGS)

- Manufactured in accordance to AS 4084-2023 (Australian Standard for steel storage racking)

- Dimensions: Constructed 4 bays – 10810mm (L) x 2438mm (H) x 838mm (D)

- Construction: Heavy duty steel, plastic powdered coated

- 3 Level design


FRAME:

- Constructed dimensions: 2438mm (H) x 90mm (W) x 838mm (D)

- Capacity: certified up to 8 tonnes

- 1 Frame comprises of: 2x Upright posts, 2x Base plates, support bars, bolts, nuts

- Blue plastic powdered coating


BEAMS:

- Dimensions: 2591mm (L) x 100mm (h) x 45mm (D)

- Clear entry (usable length): 2580mm

- Capacity: certified up to 2 tonnes

- Orange plastic powdered coating


KEY FEATURES:

- Horizontal beams are powder coated orange for added visibility and safety.

- Low capital costs and requires little installation time.

- Adjustment to the beam height is simple, allows for your ever-changing environment.

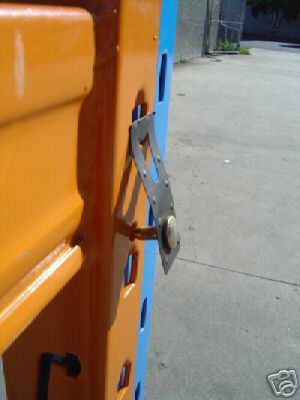

- Keyhole connection between beam and upright beams of the frame. As soon as a beam is attached to a frame, the lock snaps into place and holds firm to guard against accidental dislodgement. The load bearing keyhole connection provides greater rigidity and strength, and allows for easy adjustment.

PACKAGE COMPONENTS INCLUDED IN SALE:
- 5x Frames (frame components listed above)
- 16x Beams
- 32 x Speedlock safety pins for beams
- 10x Dyna Bolts

(2438_4bays)

SKU 2438_4bays
Brand mrpalletracking
Shipping Weight 250.0000kg
