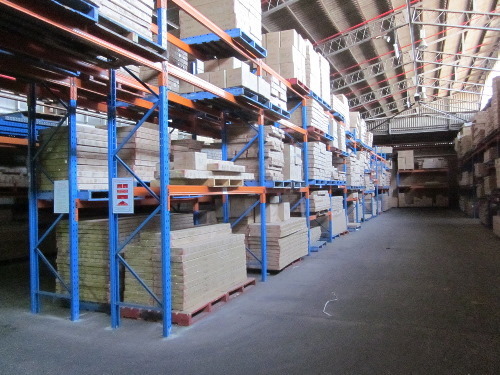

2 Bays Pallet Racking System – 12 Pallet Storage Capacity

Upgrade your warehouse, workshop, or retail storage with our 2-Bay Heavy Duty Pallet Racking System, designed for strength, safety, and long-term efficiency. With a total 12 pallet storage capacity, this racking system provides a cost-effective solution to maximise your storage space.

✔️ Easy Installation – DIY friendly, with optional professional installation service
✔️ Adjustable Design – Height-adjustable beams to suit your specific requirements
✔️ Economical & Efficient – Low capital cost while boosting storage capacity and workflow

Specifications

• System Size (2 Bays): 5450mm (L) x 2438mm (H) x 838mm (D)

• Design: 3 Level racking system

• Construction: Heavy-duty steel, powder-coated finish

• Standards:

  • DEXION compatible – integrates with existing Dexion pallet systems

  • ISO 9001 Certified product (SGS)

  • Manufactured in accordance with AS 4084-2023 (Australian Standard for Steel Storage Racking)

Frame Details

• Dimensions: 2438mm (H) x 90mm (W) x 838mm (D)

• Capacity: Certified up to 8 tonnes per frame

• Finish: Blue powder-coated for durability

• Fully Assembled Frames – each includes:

  • 2x Upright posts

  • 2x Base plates

  • Support bars, bolts & nuts

Beam Details

• Dimensions: 2690mm (L) x 100mm (H) x 45mm (D)

• Clear Entry (usable length): 2591mm

• Capacity: Certified up to 2 tonnes per beam

• Finish: Orange powder-coated for visibility & safety

Key Features

• High-visibility orange beams for safety in warehouse environments

• Simple beam height adjustment for changing storage needs

• Keyhole lock connection for fast assembly & secure load support

• Built for long-term strength, rigidity, and compliance with safety standards

Package Components (Included in Sale)

• 3x Fully Assembled Frames

• 8x Heavy Duty Beams

• 16x Speedlock Safety Pins

• 12x Dyna Bolts

Why Choose Our Pallet Racking?

This 2-bay pallet racking system offers premium quality, Australian Standards compliance, and maximum value at wholesale pricing. Perfect for warehouses, factories, workshops, or retail storage areas.
