1 Bay Pallet Racking System – 8 Pallet Storage Capacity

Upgrade your warehouse, workshop, or retail storage with our 1-Bay Pallet Racking System. With a total 8 pallet storage capacity across 4 levels, this racking system is designed for strength, safety, and long-lasting performance.

✔️ Easy to install (DIY) – professional installation service available
✔️ Height-adjustable beams – configure to suit your requirements
✔️ Economical & efficient – increase storage capacity at low cost
✔️ Australian Standards compliant – safe, reliable, and certified


Specifications

  • System Capacity: 1 Bay – 8 Pallets

  • Standards:

    • DEXION compatible (integrates with existing systems)

    • ISO 9001 Certified (SGS)

    • Manufactured to AS 4084-2023 (Australian Standard for Steel Storage Racking)

  • Dimensions (Constructed): 2790mm (L) x 4267mm (H) x 838mm (D)

  • Construction: Heavy-duty steel, powder-coated for durability

  • Design: 4-Level Racking System


Frame Details

  • Dimensions: 4267mm (H) x 90mm (W) x 838mm (D) (Fully Assembled)

  • Capacity: Certified up to 8 tonnes

  • Includes: 2x Upright posts, 2x Base plates, support bars, bolts & nuts

  • Finish: Blue powder-coated steel

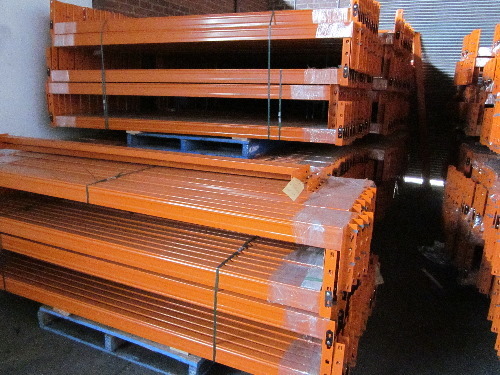

Beam Details

  • Dimensions: 2690mm (L) x 100mm (H) x 45mm (D)

  • Clear Entry (Usable Length): 2591mm

  • Capacity: Certified up to 2 tonnes per beam

  • Finish: Orange powder-coated steel for high visibility & safety


Key Features

  • Beams powder-coated orange for visibility and safety

  • Low installation time & cost-effective solution

  • Simple beam height adjustment for flexible storage needs

  • Keyhole connection system – lock snaps securely in place to prevent dislodgement

  • Greater rigidity & load-bearing strength while allowing easy adjustment


Package Components Included

  • 2x Frames (fully assembled)

  • 6x Beams

  • 8x Speedlock safety pins

  • 8x Dyna Bolts

(4267_1bay)

SKU 4267_1bay
Brand mrpalletracking
Shipping Weight 250.0000kg
