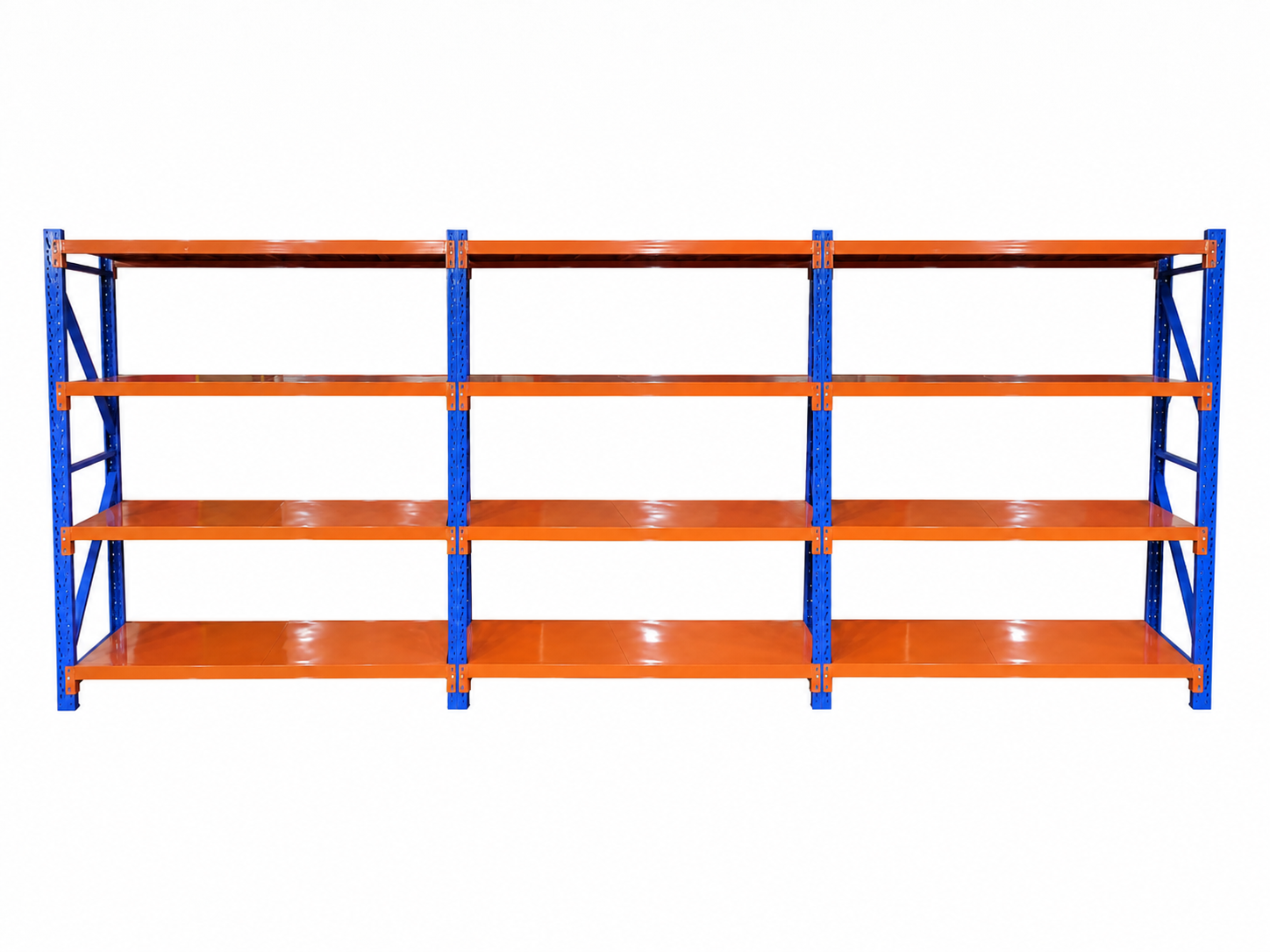

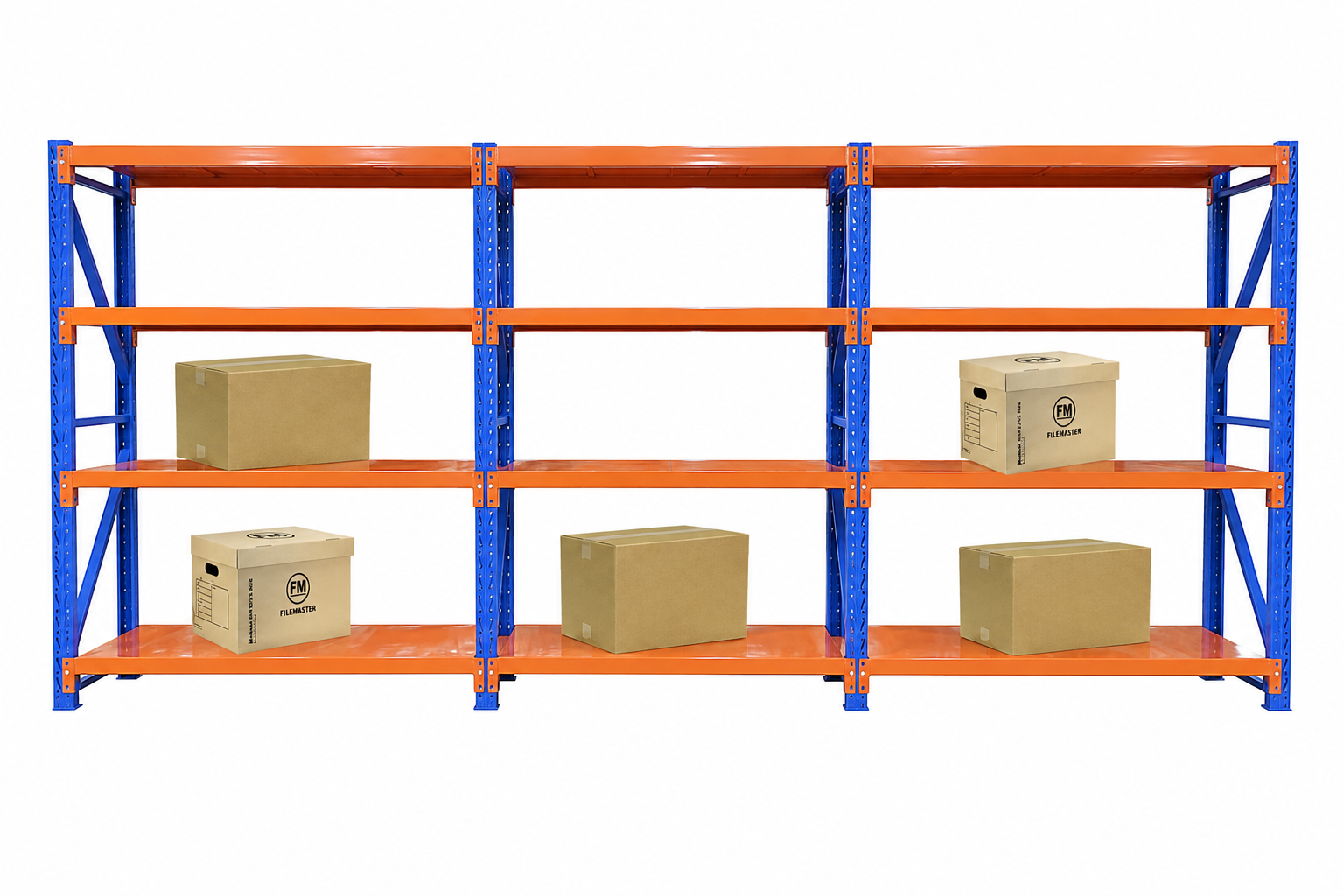

Light-Duty Warehouse and Garage Racking – 3 Bays with 4 Shelves per Bay

Expand your storage capacity with this three-bay Light-Duty Racking System from MR Pallet Racking. Featuring four adjustable steel shelf levels in each bay, it provides an economical and versatile solution for organising cartons, tools, equipment, spare parts and general stock.

The connected three-bay design uses shared frames to maximise storage space while reducing the number of components required. It is ideal for warehouses, garages, workshops, storerooms and retail environments.

Product Benefits

Three connected storage bays
Four adjustable shelf levels per bay
Twelve shelf levels across the complete system
Up to 200kg capacity per level
Up to 800kg evenly distributed capacity per bay
Up to 2400kg combined evenly distributed shelf capacity
DIY-friendly clip-on assembly
Professional installation service available
Durable powder-coated steel construction
Direct access to goods on every level

Overall Specifications

Nominal dimensions: 6000mm wide × 2000mm high × 600mm deep
Configuration: Three connected bays
Shelf levels: Four per bay
Total shelf levels: Twelve
Capacity: Up to 200kg per level
Construction: Heavy-duty steel
Finish: Durable powder coating
Frame colour: Blue
Beam and shelf colour: Orange
Shelf heights: Individually adjustable

Frame Specifications

Four frames are included to create the connected three-bay configuration.

Dimensions: 2000mm high × 50mm wide × 600mm deep
Construction: Heavy-duty steel
Finish: Blue powder coating
Quantity included: 4 frames

Beam Specifications

Dimensions: 2000mm long × 40mm high × 60mm deep
Nominal clear entry: Approximately 2000mm per bay
Capacity: Up to 200kg per shelf level
Finish: Orange powder coating
Quantity included: 24 beams
Safety pins included: 48

Steel Shelf Specifications

Each shelf level uses two steel panels to create the complete storage surface.

Individual panel dimensions: 1000mm long × 18mm high × 545mm deep
Panels per shelf level: 2
Panels per bay: 8
Total panels included: 24
Capacity: Up to 200kg per level when correctly installed

Package Includes

4 blue steel frames
24 orange support beams
48 beam safety pins
24 orange steel shelf panels
Upright posts, base plates and frame bracing
Required assembly components

Key Features

Economical shared-frame design
Fast and straightforward DIY assembly
Professional installation available
Individually adjustable shelf heights
Strong steel construction
Secure keyhole beam connections
Safety pins help prevent accidental beam dislodgement
Durable powder-coated finish
Direct access to stock on every shelf level
Suitable for commercial and residential storage

Secure Keyhole Connection

The beams connect to the upright frames through a strong keyhole locking system. Once fitted, the supplied safety pins hold each beam securely and help prevent accidental dislodgement.

Beam heights can be adjusted quickly, allowing you to customise the shelf spacing for cartons and products of different sizes.
