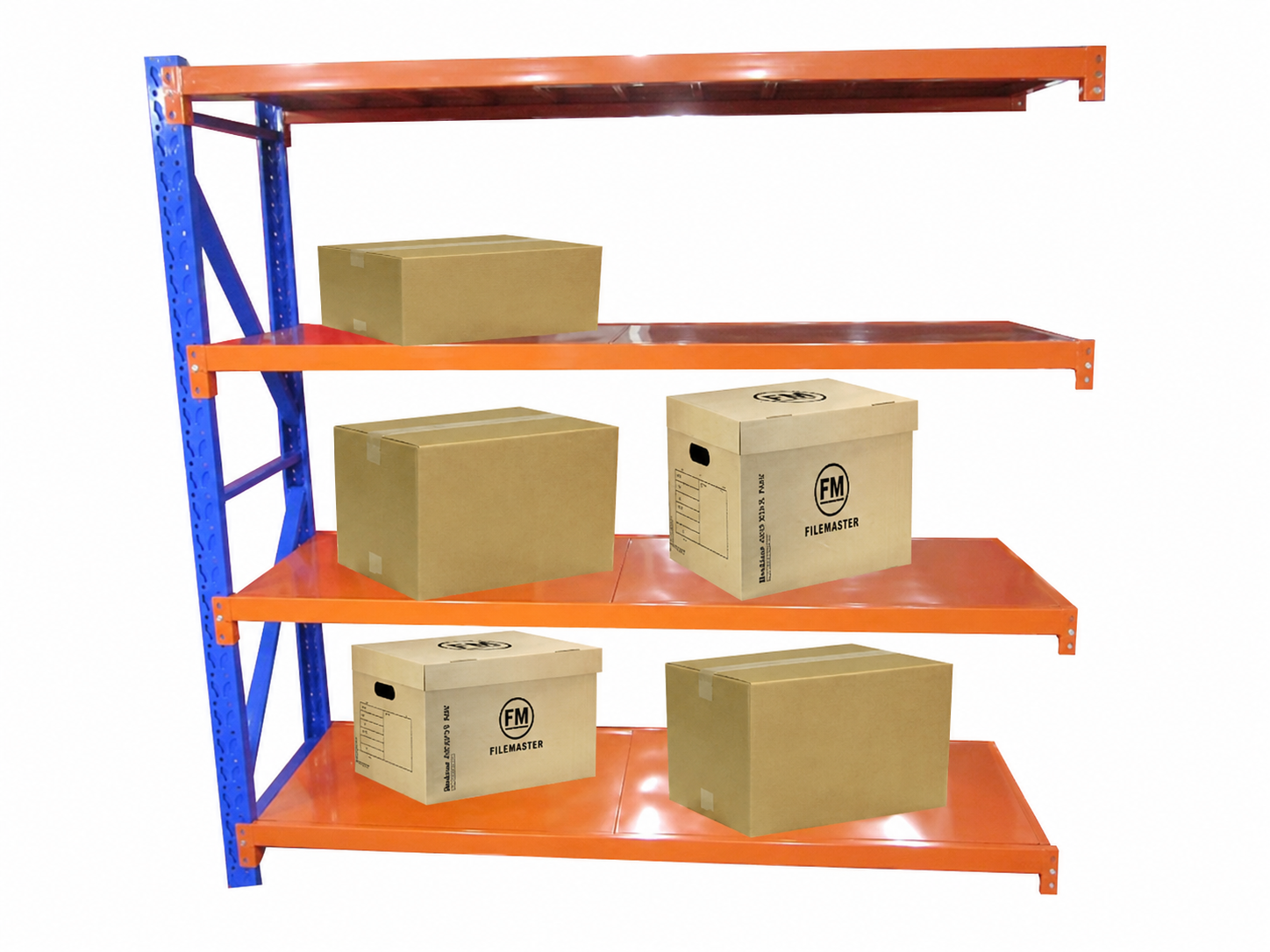

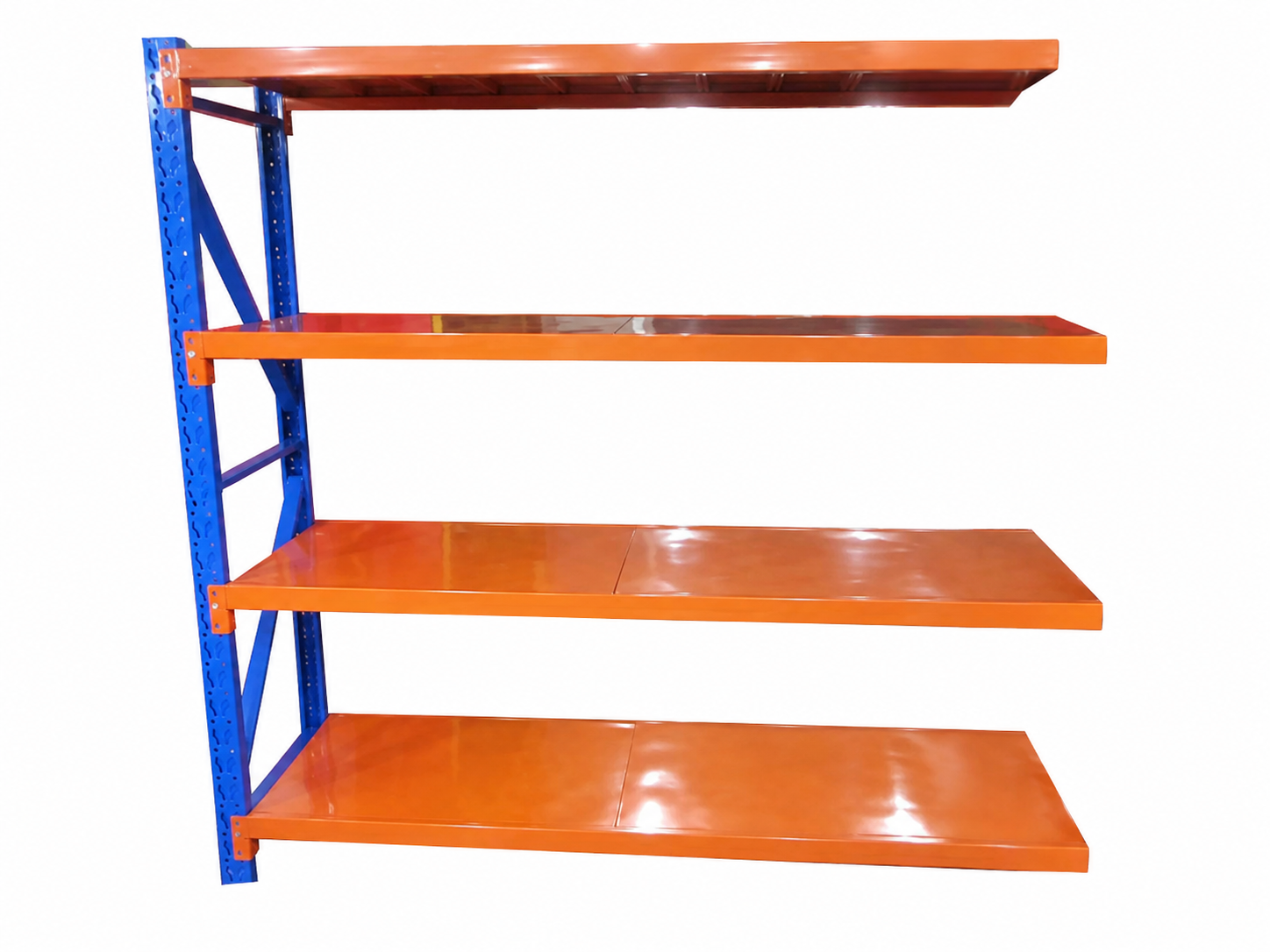

2000mm Light-Duty Add-On Racking Bay with 4 Steel Shelves

Expand your existing shelving system with this Light-Duty Add-On Racking Bay from MR Pallet Racking. Designed to connect to a compatible starter bay, the add-on package uses one shared frame to extend your storage system economically.

Featuring four adjustable steel shelf levels, this system is ideal for warehouses, garages, workshops, storerooms and retail stock areas. It provides convenient access to cartons, tools, spare parts, equipment and general stock.

The system is suitable for DIY assembly, with professional installation also available.

Important Add-On Bay Information

This product is an add-on bay, not a complete freestanding shelving unit. It includes only one frame and must be connected to an existing compatible starter bay or shelving system.

For a freestanding unit, please purchase a starter bay containing two frames.

Product Specifications

• Overall dimensions: 2000mm wide × 2000mm high × 600mm deep
• Configuration: One add-on bay with four shelf levels
• Shelf capacity: Certified up to 200kg per level
• Total shelf capacity: Up to 800kg evenly distributed
• Construction: Heavy-duty steel
• Frame colour: Blue
• Beam and shelf colour: Orange
• Finish: Durable colour coating
• Shelf heights: Individually adjustable
• Assembly: Suitable for DIY installation

Frame Specifications

The add-on bay includes one blue steel frame that connects to an existing compatible shelving bay.

• Frame dimensions: 2000mm high × 50mm wide × 600mm deep
• Construction: Heavy-duty steel
• Finish: Blue colour coating
• Quantity included: 1 frame

Beam Specifications

• Beam dimensions: 2000mm long × 40mm high × 60mm deep
• Nominal clear entry: Approximately 2000mm
• Certified capacity: Up to 200kg per shelf level
• Finish: Orange colour coating
• Adjustable keyhole connection
• Quantity included: 8 beams
• Safety pins included

Steel Shelf Board Specifications

Each shelf level uses two steel panels to create the full 2000mm-wide storage surface.

• Individual panel dimensions: 1000mm long × 18mm high × 545mm deep
• Panels per shelf level: 2
• Total panels included: 8
• Capacity: Up to 200kg per level when correctly installed
• Durable and easy-to-clean steel construction

Package Contents

This add-on bay package includes:

• 1 blue steel frame
• 8 orange support beams
• 16 beam safety pins
• 8 orange steel shelf panels
• Components required to assemble the supplied frame

Key Features and Benefits

• Economically expands an existing shelving system
• Four adjustable steel shelf levels
• Certified capacity of up to 200kg per level
• Up to 800kg total evenly distributed shelf capacity
• Strong steel construction
• Durable colour-coated finish
• Easy DIY assembly
• Professional installation available
• Adjustable shelf heights
• Direct access to stock on every level
• Secure keyhole beam connections
• Safety pins help prevent accidental beam dislodgement

Secure Keyhole Connection

The beams connect to the upright frames through a strong keyhole locking system. Once each beam is fitted, the supplied safety pins secure it in position and help prevent accidental dislodgement.

The beam heights can be adjusted quickly, allowing the shelf spacing to accommodate items of different sizes.

Suitable Applications

This light-duty add-on shelving bay is ideal for:

• Warehouses and storerooms
• Garages and sheds
• Workshops
• Retail stockrooms
• Tools and spare parts
• Archive boxes
• Cartons and packaged goods
• General household storage

Installation Service Available

Professional installation is available through MR Pallet Racking. Contact our team for an installation quotation and to confirm compatibility with your existing shelving system.
