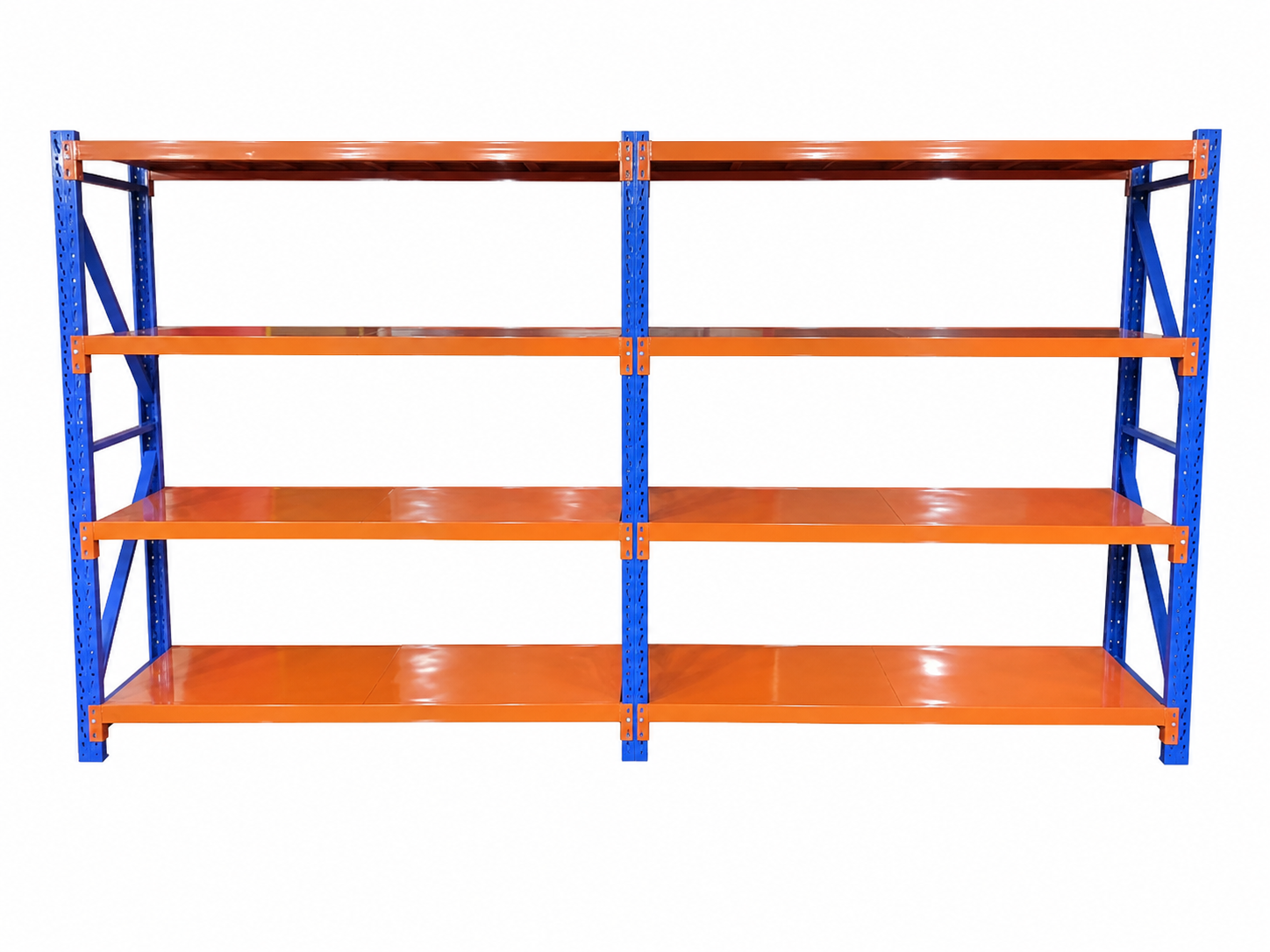

Light-Duty Warehouse and Garage Racking – 2 Bays with 4 Shelves per Bay

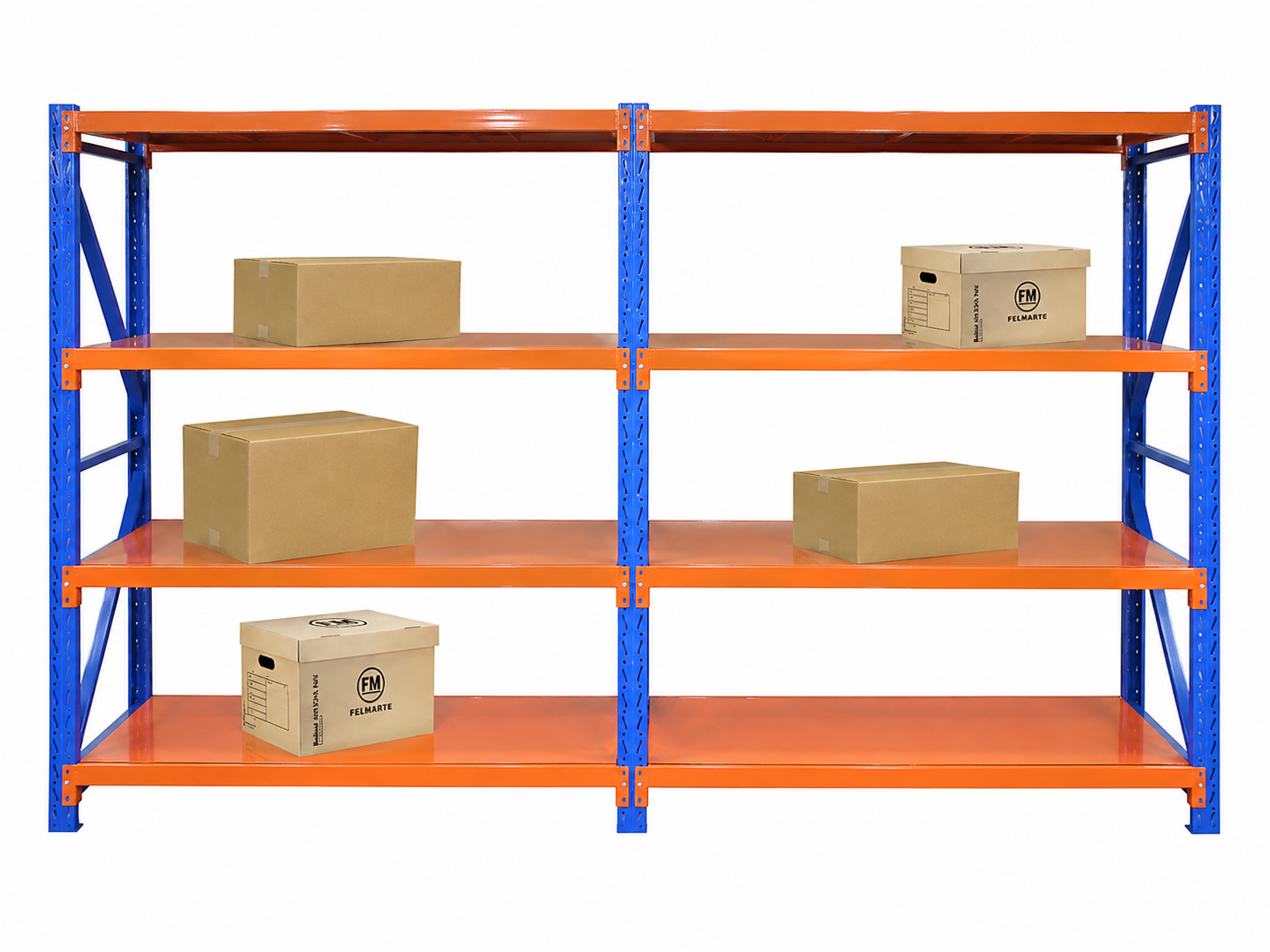

Create an organised and accessible storage area with this two-bay Light-Duty Racking System from MR Pallet Racking. Featuring four adjustable steel shelf levels in each bay, the system is ideal for storing cartons, tools, equipment, spare parts and general stock.

The connected two-bay configuration uses three frames, providing a cost-effective way to maximise storage space in warehouses, garages, workshops and retail stockrooms.

Product Benefits

Two connected storage bays
Four adjustable shelf levels per bay
Up to 200kg capacity per level
Up to 800kg evenly distributed shelf capacity per bay
Up to 1600kg combined evenly distributed shelf capacity
DIY-friendly clip-on assembly
Professional installation service available
Durable powder-coated steel construction
Direct access to goods on every level

Overall Specifications

Nominal dimensions: 4000mm wide × 2000mm high × 600mm deep
Configuration: Two connected bays
Shelf levels: Four per bay
Total shelf levels: Eight
Capacity: Up to 200kg per level
Construction: Heavy-duty steel
Finish: Durable colour coating
Frame colour: Blue
Beam and shelf colour: Orange

Frame Specifications

Three frames are included to create the connected two-bay configuration.

Dimensions: 2000mm high × 50mm wide × 600mm deep
Construction: Heavy-duty steel
Finish: Blue powder coating
Quantity included: 3 frames

Beam Specifications

Dimensions: 2000mm long × 40mm high × 60mm deep
Nominal clear entry: Approximately 2000mm per bay
Capacity: Up to 200kg per shelf level
Finish: Orange powder coating
Quantity included: 16 beams
Safety pins included: 32

Steel Shelf Specifications

Each shelf level uses two steel panels to form the complete storage surface.

Individual panel dimensions: 1000mm long × 18mm high × 545mm deep
Panels per shelf level: 2
Panels per bay: 8
Total panels included: 16
Capacity: Up to 200kg per level when correctly installed

Package Includes

3 blue steel frames
16 orange support beams
32 beam safety pins
16 orange steel shelf panels
Upright posts, base plates and frame bracing
Required assembly components

Secure Keyhole Connection

The beams attach securely to the upright frames using a strong keyhole locking system. Once fitted, the supplied safety pins help prevent accidental beam dislodgement.

Beam heights can be adjusted quickly, allowing the shelf spacing to accommodate products of different sizes as your storage requirements change.
