3 Bays Pallet Racking System – 18 Pallet Storage Capacity
Upgrade your warehouse, workshop, or retail storage with our 3 Bay Pallet Racking System, providing 18 pallet storage capacity. Built with heavy-duty steel, fully compliant with AS 4084-2023 Australian Standard, and ISO 9001 (SGS) Certified, this system ensures maximum strength, safety, and efficiency.
✅ Easy DIY Installation (Professional installation service also available)
✅ Height-adjustable beams – configure storage to suit your needs
✅ Economical solution – low capital cost, high storage efficiency
✅ Dexion Compatible – seamlessly integrates with existing pallet racking systems
Specifications
-
System Dimensions (3 bays constructed): 8388mm (L) x 3660mm (H) x 838mm (D)
-
Levels: 3-Level design
-
Construction: Heavy-duty steel, powder-coated finish
-
Compliance: Manufactured in accordance with AS 4084-2023 (Australian Standard for Steel Storage Racking)
-
Certification: ISO 9001 Certified product (SGS)
Frame Details
-
Frame Dimensions: 3660mm (H) x 90mm (W) x 838mm (D)
-
Capacity: Certified up to 8 tonnes per frame
-
Finish: Blue powder-coated steel
-
Components (per frame):
-
2 x Upright posts
-

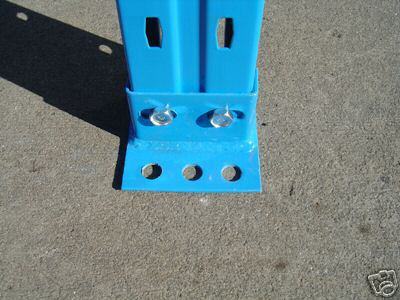

2 x Base plates
-
Support bars, bolts & nuts
-
-
Pre-Assembled Frames – ready for fast installation
Beam Details
-
Beam Dimensions: 2690mm (L) x 100mm (H) x 45mm (D)
-
Clear Entry (Usable Length): 2591mm
-
Capacity: Certified up to 2 tonnes per beam
-
Finish: Orange powder-coated steel
-
Locking Mechanism: Keyhole connection with Speedlock safety pins for extra rigidity and accident protection
Key Features
-
Powder-coated orange beams for safety and visibility
-
Strong keyhole connection – snap-lock design prevents accidental dislodgement
-
Adjustable beam height for flexible configurations
-
Low capital cost & minimal installation time
-
Durable finish for long-lasting performance
Package Components Included
-
4 x Frames (as detailed above)
-
12 x Beams
-
24 x Speedlock Safety Pins
-
16 x Dynabolts
(3660_3bays)
| SKU | 3660_3bays |
| Brand | mrpalletracking |
| Shipping Weight | 250.0000kg |
