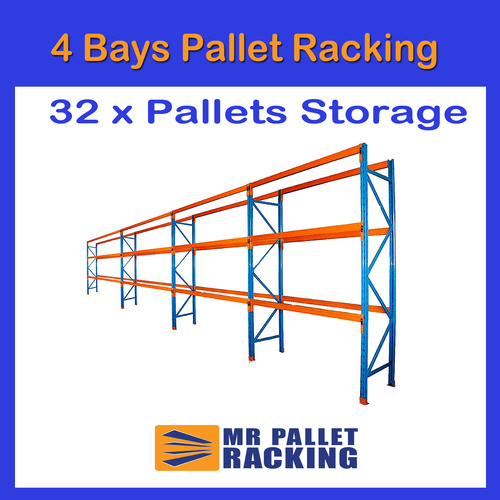

4 Bay Pallet Racking System – 32 Pallet Storage Capacity

Upgrade your warehouse efficiency with our 4 Bay Pallet Racking System, designed for durability, safety, and compliance. This heavy-duty racking solution provides storage for 32 standard pallets across 4 levels, making it perfect for warehouses, workshops, and commercial storage facilities.

Key Benefits

• DIY Friendly – Easy to install, with professional installation service available.

• Flexible Design – Height-adjustable beams to suit changing storage needs.

• Cost Effective – Increase storage capacity with low capital investment.

• Safety Certified – Designed and manufactured to Australian Standard AS4084-2023.

Specifications

• System Compatibility: DEXION compatible, suitable for integration with existing pallet racking systems.

• Certification: ISO 9001 Certified (SGS).

• Dimensions (Constructed): 10,810mm (L) × 4,876mm (H) × 838mm (D).

• Levels: 4 storage levels.

• Material & Finish: Heavy-duty steel with powder-coated protection.

Frame Details

• Dimensions (Each Frame): 4,876mm (H) × 90mm (W) × 838mm (D).

• Load Capacity: Certified up to 8 tonnes per frame.

• Components per Frame:

  • 2 × Upright posts

  • 2 × Base plates

  • Support bars, bolts & nuts

• Finish: Blue powder-coated for durability.

Beam Details

• Dimensions: 2,680mm (L) × 100mm (H) × 45mm (D).

• Clear Entry (Usable Length): 2,590mm.

• Load Capacity: Certified up to 2 tonnes per beam.

• Finish: Orange powder-coated for visibility & safety.

Safety & Design Features

• High-visibility orange beams for safety.

• Speedlock safety pins included for all beams.

• Keyhole connection design for secure locking and easy height adjustment.

• Rigid load-bearing connection ensures stability under heavy loads.

Package Components (Included in Sale)

• 5 × Frames (fully assembled with base plates, bolts, and support bars).

• 24 × Beams (orange, heavy-duty).

• 48 × Speedlock safety pins.

• 20 × Dyna Bolts for floor fixing.
